Brand: Tripp-Lite
|
SKU:
396491

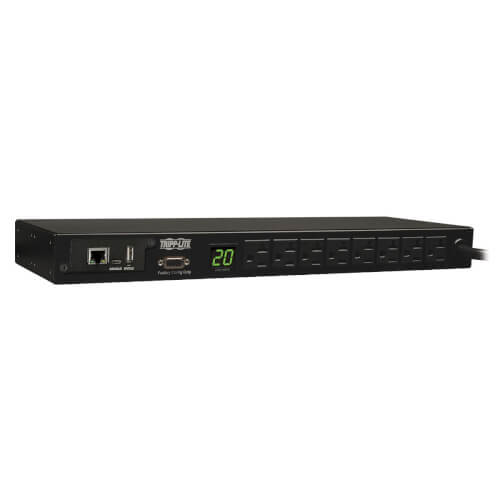

Tripp-Lite PDUMNH20 | 1.9kW Single-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, LX Platform Interface, TAA
Regular price
$795.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PDUMNH20 | 1.9kW Single-Phase Monitored PDU, 120V Outlet...
Regular price
$795.29
Unit price
Description
Description
Tripp-Lite PDUMNH20 | 1.9kW Single-Phase Monitored PDU, 120V Outlets (8 5-15/20R), L5-20P/5-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, LX Platform Interface, TAA
Features
- 20A single phase 120V Monitored Power Distribution Unit / PDU (agency derated to 16A continuous)
- Attached NEMA L5-20P input plug with NEMA 5-20P adapter and 12-ft. (3.66 m) line cord
- 1U horizontal rackmount installation format supports installation in 2 or 4 post equipment racks
- 8 NEMA 5-15R outlets
- Lighted display reports output power consumption in amps
- Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
- PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
- Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements.
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Included cord retention brackets keep vital network equipment plugged in and continuously powered
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Special Features
| High Availability PDU Features | Auto Probe Monitoring (included) |
|---|
Specifications
Specifications
Highlights
- Monitored 16A 120V PDU, 1U horizontal rackmount format
- Reports voltage, frequency & load level via ethernet interface
- Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
- NEMA L5-20P input with included 5-20P plug adapter
- 8 NEMA 5-15/20R outlets with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Package Includes
- Rack-mount PDU
- Built-in LX Platform interface
- L5-20R to 5-20P adapter
- Plug retention plates
- Rack-mounting brackets
- Owner's manual
Overview
| UPC Code | 37332152015.0 |
|---|---|
| PDU Type | Monitored |
Input
| PDU Input Voltage | 120V |
|---|---|
| Recommended Electrical Service | Single-phase 20A 120V service |
| Maximum Input Amps | 16 |
| Maximum Input Amps Details | Agency de-rated to 16A continuous |
| PDU Plug Type | NEMA 5-20P; NEMA L5-20P |
| Input Phase | Single-Phase |
Output
| Output Capacity Details | 1.92kW (120V) / 16A total capacity; 16A max per outlet |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Output Receptacles | (8) 5-15/20R |
| Output Nominal Voltage | 120V |
| Overload Protection | - |
User Interface, Alerts & Controls
| Front Panel LCD Display | Digital meter reports PDU output current in amps |
|---|---|
| Switches | - |
| LED Indicators | - |
Physical
| Form Factors Supported | 1U horizontal rackmount in 2 or 4 post racks |
|---|---|
| Material of Construction | Metal |
Environmental
| Operating Temperature Range | 0C ~ 40C (32F ~ 104F) |
|---|---|
| Storage Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Relative Humidity | 5 to 95% non-condensing |
Communications
| SNMP Compatibility | Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems |
|---|
Standards & Compliance
| Certifications | Tested to UL 60950 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for Monitored Rack PDU (Multi-language)
- PowerAlert Device Manager (PADM) 20.0.0 Command Line Interface User's Guide (English)
- Owner's Manual for WEBCARDLX (English)
- Single Phase Power Distribution Units (PDUs) Visio Stencil
- Single-Phase Power Distribution Units (PDUs) Stencil Preview
- 120V Power Distribution Unit (PDU) Brochure (English)
- 120V Power Distribution Unit (PDU) Models and Specifications List (English)
- 230V Power Distribution Unit (PDU) Brochure (English)
- Integrated Solutions Brochure (English)
- SNMP Management of Tripp Lite Devices Technical Application Bulletin (English)
- PDU Buying Guide
- PDU Installation Options
- Custom Products from Tripp Lite Are One Call Away
- Outlet Plug Types
- 7 Steps to Choosing the Right Single-Phase or 3-Phase PDU
- PDU Types
- How to Choose a PDU: Monitored PDUs
- PADM20 High-Level Overview
- PowerAlert Device Manager v20
- PowerAlert Device Manager v20 for Switched or Monitored PDUs
- PowerAlert Device Manager v20 for Networked Tripp Lite UPS Systems
- New Auto-Probe Feature on UPS Systems and PDUs
