Brand: Tripp-Lite | SKU: 345206

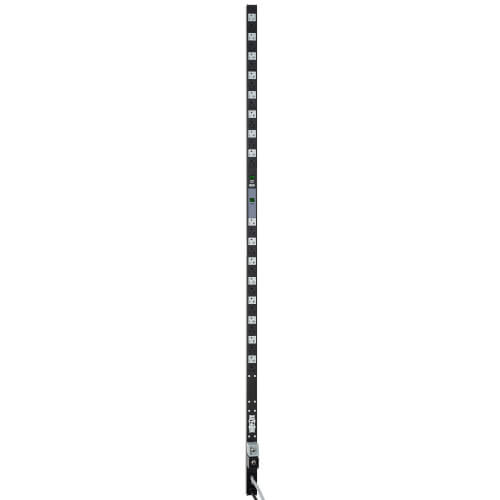

Tripp-Lite PDUMV40 | 3.8kW Single-Phase Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10 ft. (3.05 m) Cord, 0U Vertical

$634.47

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Tripp-Lite PDUMV40 | 3.8kW Single-Phase Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10 ft. (3.05 m) Cord, 0U Vertical

Features

All-in-one Zero U form factor enables efficient, single-enclosure installations
Dual independent circuit design delivers high capacity across 32 outlets in minimal space
Input plugs, input power cords, breakers and outlets are color-coded to match each independent 20A circuit, allowing simplified cable management for multi-server configurations (each circuit is Agency de-rated to 16A continuous)
Dual digital current monitoring displays (1 for each circuit)
10-ft. (3.05 m) dual input power cords increase mounting flexibility; mounting hardware included
Combines the advantages of two separate high-current PDU's without the extra expense, increased space requirements and added management complexity
Includes two adapters that convert NEMA L5-20P input plugs to NEMA 5-20P. Twist-lock interface ensures secure connection
Switchless design prevents accidental shutdown of connected equipment
Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

Specifications

Highlights

Dual Circuit 71 inch PDU
Dual Independent Current Monitoring Displays
32 NEMA 5-15/20R 120V outlets color coded for each circuit
Two 16A independent circuits of 16 outlets each
Color-coded input power cords for each circuit
Supports connection to NEMA L5-20R or 5-20R 120V 20A wall receptacle

Package Includes

PDUMV40 Dual Vertical Circuit/Metered PDU
Mounting Hardware
Two NEMA L5-20P to 5-20P plug adapters
Owner's Manual with warranty information

Overview

UPC Code	37332132505.0
PDU Type	Metered

Input

PDU Input Voltage	120V
Recommended Electrical Service	Two single-phase 20A 120V circuits
Maximum Input Amps	16
Maximum Input Amps Details	Each circuit supports 20A maximum (Agency de-rated to 16A continuous)
PDU Plug Type	NEMA 5-20P; NEMA L5-20P
Input Phase	Single-Phase

Output

Output Capacity Details	3.8kW total - 1.9kW per circuit (120V); 32A maximum total - 16A maximum per circuit; 16A max per 5-15/20R outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(32) 5-15/20R
Output Nominal Voltage	120V
Overload Protection	2 x 20A circuit breakers; Grey-color circuit breaker protects grey-color outlets; Black-color circuit breaker protects black-color outlets

User Interface, Alerts & Controls

Front Panel LCD Display	Set of 2 digital current meters reports PDU output current in amps; Gray color-coded meter reports output amps from gray color outlets (16A max); Black color-coded meter reports output amps from black color outlets (16A max)
Front Panel LEDs	-
Switches	-

Physical

Form Factors Supported	Zero U vertical rackmount, wall-mount, raceway, workbench and more
Material of Construction	Aluminum

Environmental

Operating Temperature Range	0C ~ 40C (32F ~ 104F)
Storage Temperature Range	-30°C to +50°C (-22°F to +122°F)

Standards & Compliance

Certifications	Tested to UL 60950-1: 2007 R10.14 (USA) and CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), RoHS Compliant

Warranty

Product Warranty Period (Worldwide)	2-year limited warranty
