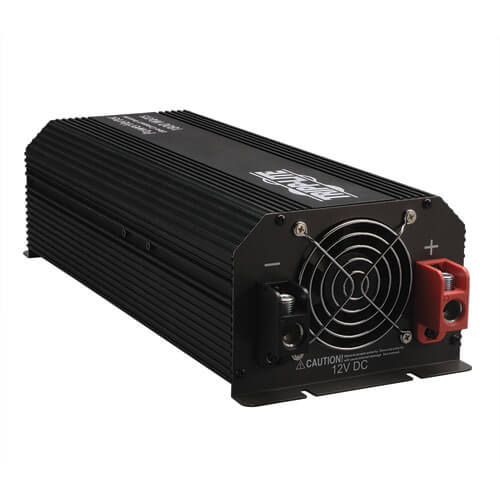

Tripp-Lite PV1800GFCI | 1800W PowerVerter Compact Inverter with 2 G...
Regular price
$694.00
Unit price
Brand: Tripp-Lite
|
SKU:
565363
Regular price
$694.00
Unit price
Description
Description
Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1800 watts of 120V AC power to 2 GFCI protected AC outlets from any 12V battery or automotive DC source. Includes a set of nut-and-bolt style DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level. NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18" from the PV1800GFCI's battery in the positive line.
Features
- Allows users to run AC appliances from a properly sized 12V battery or automotive DC system
- Converts 12V DC battery power to 120V AC power
- 1800 watts continuous output power; 3600 watts peak output power (instantaneous)
- 2 GFCI protected outlets (Ground Fault Circuit Interrupter)
- Compact, lightweight design with grooved surface for efficient cooling, all-metal housing
- Diagnostic LEDs indicates low battery voltage level and load level
- Low battery alarm with auto-shutoff prevents deep battery discharge
- High-efficiency operation conserves batteries to prolong run time
- Cooling fan regulates internal temperature and prolongs unit service life
Special Features
| TVSS Grounding | Grounding lug grounds the inverter to vehicle or earth ground; user supplies cabling |
|---|
Specifications
Specifications
Package Includes
- PV1800HF Inverter
- Warranty information
- Instruction manual
Highlights
- 12V DC input; 120V AC output; 2 GFCI protected outlets
- 1800 watts continuous output
- 3600 watts peak output (instantaneous)
- Powers an entire mobile office
Overview
| UPC Code | 37332155795.0 |
|---|
Input
| Recommended Electrical Service | Requires 12VDC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended. |
|---|---|
| Maximum Input Amps / Watts | Full continuous load - 200A at 12VDC, No load - 2.7A at 12VDC, Shutdown |
| Input Connection Type | Set of 2 DC bolt-down wiring terminals. User supplies cabling; minimum gauges for full load operation: 0 (16 ft max), 00 or 2/0 (20 ft max) |
| Voltage Compatibility (VDC) | 12 |
Output
| Frequency Compatibility | 60 Hz |
|---|---|
| Pure Sine Wave Output | No |
| Output (Watts) | 1800 |
| Nominal Output Voltage(s) Supported | 120V |
| Output Receptacles | (2) 5-15R |
| Continuous Output Capacity (Watts) | 1800 |
| Peak Output Capacity (Watts) | 3600 |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC) |
| Output Frequency Regulation | 60 Hz (+/- 3 Hz) |
| Overload Protection | Automatic overload protection shuts down inverter system in the event of overloads. |
Battery
| DC System Voltage (VDC) | 12 |
|---|
User Interface, Alerts & Controls
| Audible Alarm | Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less. |
|---|
Physical
| Cooling Method | Fan |
|---|---|
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) |
| Material of Construction | Aluminum, Steel |
Environmental
| Relative Humidity | 0-95% non-condensing |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
