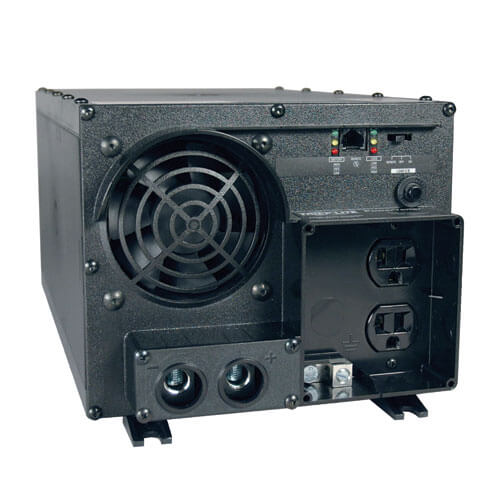

Tripp-Lite PV2400FC | 2400W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Regular price
$1,366.80
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite PV2400FC | 2400W PowerVerter Plus Industrial-Strength In...
Regular price
$1,366.80
Unit price
Brand: Tripp-Lite
|
SKU:
565366
Regular price
$1,366.80
Unit price
Description
Description
Tripp-Lite PV2400FC | 2400W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Features
- Converts 24V DC battery power to 120V AC power
- 2400W continuous output power
- Peak surge output: OverPower (up to 1 hour), 3600 watts; Double-Boost (up to 10 seconds), 4800W
- Set of 2 bolt-down DC wiring terminals for 24V battery connection; 2 x NEMA 5-15/20R outlets
- Frequency control for operating stability
- High-efficiency operation conserves batteries to prolong run time
- Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
- DC fusing protects inverter against overload
- High-impact polycarbonate housing
- RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
Specifications
Specifications
Highlights
- Designed for heavy duty and motor loads
- 24V DC input; 120V AC output; 2 outlets
- 2400W continuous output
- Peak surge output: OverPower (up to 1 hour)—3600W; Double-Boost (up to 10 seconds)—4800W
- High-efficiency power conversion
- Automatic overload protection
Package Includes
- PV2400FC Inverter
- Instruction manual
Overview
| UPC Code | 37332042200.0 |
|---|
Input
| Recommended Electrical Service | Requires 24V DC input source capable of delivering 120A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended |
|---|---|
| Maximum Input Amps / Watts | Full continuous load - 120A at 24V DC; No load - 2.2A at 24V DC |
| Input Connection Type | Set of 2 bolt-down DC wiring terminals |
| Input Cord Length Details | User supplies cabling; 2/0 gauge or larger recommended |
| Voltage Compatibility (VDC) | 24 |
Output
| Frequency Compatibility | 60 Hz |
|---|---|
| Pure Sine Wave Output | No |
| Output (Watts) | 2400 |
| Nominal Output Voltage(s) Supported | 120V |
| Output Receptacles | (2) 5-15R |
| Continuous Output Capacity (Watts) | 2400 |
| Peak Output Capacity (Watts) | 4800 |
| Output Voltage Regulation | Maintains PWM sine wave output voltage of 120 V AC (+/-5%) |
| Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
| Overload Protection | Circuit breaker |
Battery
| DC System Voltage (VDC) | 24 |
|---|
User Interface, Alerts & Controls
| Front Panel LEDs | Set of 6 LEDs provides continuous status information on load percentage (6 levels reported) and battery charge level (7 levels reported). See manual for sequences |
|---|---|
| Switches | 3-position on/off/remote switch enables simple on/off power control plus "remote" setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory |
Physical
| Cooling Method | Fan |
|---|---|
| Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) |
| Material of Construction | Polycarbonate |
Environmental
| Relative Humidity | 0-95% non-condensing |
|---|
Warranty
| Product Warranty Period (Worldwide) | 1-year limited warranty |
|---|
