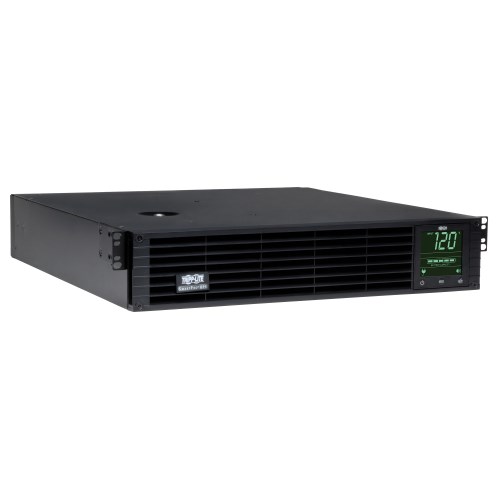

Tripp-Lite SMART2200RMXLN | SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial

Features

• Tripp Lite SMART2200RMXLN line interactive 2U rack/tower UPS with 2200VA / 2.2kVA / 1920W capacity and extended runtime options
• Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
• NEMA 5-20P input plug; 4 NEMA 5-15/20R and 4 5-15R output receptacles, Two independently switched output load banks
• Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
• High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
• Internal batteries offer 12 minutes at 50% load (960W) and 4.5 minutes at 100% load (1920W)
• Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible); Output is reduced to 1600 watts maximum with external battery packs
• External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
• Intelligent battery management system extends battery life
• Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
• LCD interface also supports a number of advanced user setup and operating preferences
• Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
• Network interfaces support communications via built-in USB, DB9 serial / contact-closure and pre-installed WEBCARDLX network management card
• WEBCARDLX interface allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, Telnet, SSH, or Command Line
• Reduce service calls with Auto Probe Autonomous Device Management. The Auto Probe feature (Firmware 15.5.2 and greater) checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)
• Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite’s PowerAlert software (available via free download at www.tripplite.com/poweralert)
• Built-in Emergency Power Off (EPO) interface with cable
