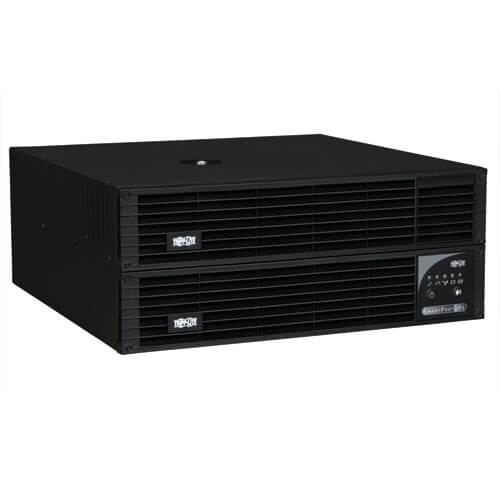

Tripp-Lite SMART3000CRMXL | SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 4U Short Depth, Extended Run, Network Card Options, USB, DB9
Tripp-Lite SMART3000CRMXL | SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 4U Short Depth, Extended Run, Network Card Options, USB, DB9

Tripp-Lite SMART3000CRMXL | SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 4U Short Depth, Extended Run, Network Card Options, USB, DB9

Tripp-Lite Smartpro Compact Rackmount Ups Sys
Part Number: 525007
0 Review(s)
Write a Review
Availability:
$2,491.43
Retail Price:$2,673.21
Your Savings:$181.78(7%)
Have a question or need a quote?

  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Tripp-Lite SMART3000CRMXL | SmartPro 120V 3kVA 2.88kW Line-Interactive Sine Wave UPS, 4U Short Depth, Extended Run, Network Card Options, USB, DB9


https://www.alldataresource.com/assets/images_commscope/features.jpg

Features

  • Tripp Lite's SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures
  • Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations
  • Runtime is expandable with optional BP48V24-2U (limit 1), BP48V48RT4U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
  • Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
  • Intelligent battery management system extends battery life
  • SMART3000CRMXL 4U rackmount 3000VA/2880 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations
  • Supports loading up to 3600 watts when hardwired
  • Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V
  • Includes NEMA L5-30P input plug (hardwire line cord installation supported), L5-30R and 5-15/20R output receptacles
  • Network management interfaces support simultaneous communications via USB port, DB9 serial port and installed Network Management Card option
  • Compatible with Tripp Lite UPS management card options WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
  • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X
  • 97% efficiency in line power mode offers substantially lower operating costs than lower efficiency UPS types
  • Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once
  • USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
  • Emergency Power Off (EPO) interface
  • Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices
  • 3-stage metered current monitoring and battery charge status LEDs; Utility power and voltage regulation LEDs; Audible alarm; Self-test
  • 2-post rackmount accessories included; 2-9USTAND tower stands and 4POSTRAILKIT 4 post rackmount kit available
  • Field-replaceable, hot-swappable internal batteries and external battery packs
  • Attractive all-black color scheme



https://www.alldataresource.com/assets/images_tripplite/overview.jpg

Overview

UPC Code37332142375
UPS TypeLine-Interactive



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Input

Rated input current (Maximum Load)24A (L5-30P input), 30A (hardwire)
Nominal Input Voltage(s) Supported120V AC
UPS Input Connection TypeL5-30P; Hardwire
UPS Input Cord Length (ft.)10
Recommended Electrical Service120V 30A
Voltage Compatibility (VAC)120



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Output

Output Volt Amp Capacity (VA)3000
Output kVA Capacity (kVA)3.00
Output Watt Capacity (Watts)2880
Output kW Capacity (kW)2.88
Output Capacity DetailsMaximum output increases to 3600W when used with hardwire input
Power Factor.96
Nominal Voltage Details120v nominal output in battery mode
Frequency Compatibility60 Hz
Output Voltage Regulation (Line Mode)-18%, +8%
Output Voltage Regulation (Battery Mode)+/-5%



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Battery

Battery TypeValve Regulated Lead Acid (VRLA)
Full Load Runtime (min.)7.5 min. (2880w)
Half Load Runtime (min.)19 min. (1440w)
Expandable Battery RuntimeExtended runtime supported via optional external battery packs
Expandable RuntimeYes



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Voltage Regulation

Voltage Regulation DescriptionAutomatic Voltage Regulation (AVR) circuits maintain clean, regulated computer-grade 120V nominal output, without using battery power, during brownouts to 83V and overvoltages to 145V
Overvoltage CorrectionInput voltages between 127 and 145V AC are reduced by 12%



https://www.alldataresource.com/assets/images_commscope/specs.jpg

User Interface, Alerts & Controls

SwitchesYes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions. Back panel includes battery charge level switch for internal or external battery configurations
Audible Alarm3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone)
LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Surge / Noise Suppression

UPS AC Suppression Joule Rating570
EMI / RFI AC Noise SuppressionYes
AC Suppression Response TimeInstantaneous



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Communications

Network Management CardsSNMPWEBCARD ;  WEBCARDLX ;  RELAYIOCARD
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports; download PowerAlert Local software at https://www.tripplite.com/poweralert
WatchDog CompatibilityYes; compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment ideal for unattended kiosk applications
EPO PortIncludes RJ11 EPO (emergency power off) port and interconnection cable
SNMP CompatibilityCompatible with Tripp Lite UPS management card options  WEBCARDLX ;  SNMPWEBCARD  and  RELAYIOCARD
Communications InterfaceDB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

SMART3000CRMXL runtime chartClick to View
Quick Start Guide for PowerAlert Power Management SoftwareClick to View
Free 1-Year Warranty Extension with RegistrationClick to View
Installation Guide for Select Rackmount UPSClick to View
Owner's Manual for SmartPro Rackmount UPSClick to View
Owner's Manual Addendum for External Battery Packs (Multi-Language)Click to View
Integrated Solutions Brochure (English)Click to View
UPS SizingClick to View
Top 12 Questions to Consider When Choosing UPS Systems for Network/Server ApplicationsClick to View
UPS Systems Buying GuideClick to View
Custom Products from Tripp Lite Are One Call AwayClick to View
Economy Mode ExplainedClick to View
Product VideosClick to View
Download images for this productClick to View
