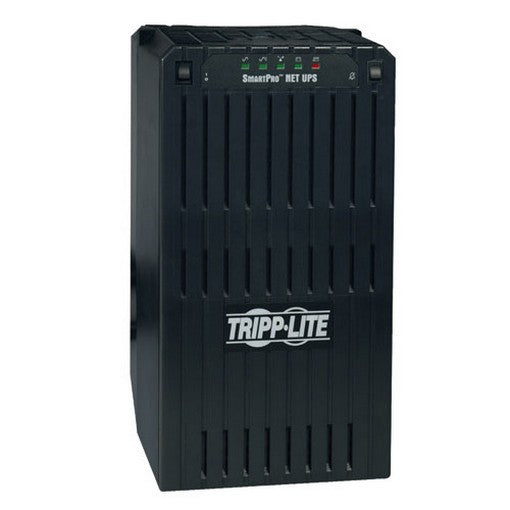

Tripp-Lite SMART3000NET SmartPro 3kVA Line Interactive UPS, Extended-Run Option, Tower, Serial, 120V

Tripp Lite's SMART 3000NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 23 minutes half load runtime and 7 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible) external battery packs. 3000VA/2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 8 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level and voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.

Features

SMART 3000NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression

3000VA/2400 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices

Large internal batteries offer runtimes of 23 minutes at half load (1500VA/1200 watts) and 7 minutes at full load (3000VA/2400 watts)

Runtime is further expandable with optional external BP24V28-2U (limit 1) and BP24V70-3U (multi-pack compatible) battery packs

Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V

Includes 8 fully protected outlets (4 NEMA 5-15R & 4 NEMA 5-15/20R) with 2 single outlet load banks that can be individually powered off and back on again via software interface

PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running user defined script commands

Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software

In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity

Supports activate self-test and UPS output power control for delayed or immediate reboot of connected equipment

Diagnostic LEDs (indicate 17 performance conditions)

Specs

Manufacturer Tripp-Lite

Condition New

Output Volt Amp Capacity (VA) 3000

Output kVA capacity (kVA) 3

Output Watt Capacity (watts) 2400

Output kW capacity 2.4

Output power factor 0.8

Nominal Output Voltage(s) Supported 120V

Frequency compatibility 60 Hz

Output voltage regulation (line mode) -13% / +5%

Output voltage regulation (Battery mode) +/- 5%

Built-in UPS output receptacles 4 5-15R outlet(s); 4 5-15/20R outlet(s)

Built-in controllable switched load banks Three switchable single-outlet 5-15R load banks

Output circuit breaker 15A branch rated (x2) - each breaker protects 4 outlets

Output AC waveform (AC mode) Sine wave

Output AC waveform (battery mode) PWM sine wave

Rated input current (at maximum load) 22A

Nominal Input Voltage(s) Supported 120V AC

UPS input connection type L5-30P

UPS Input cord length (ft) 8

UPS Input cord length (m) 2.4

Recommended Electrical Service 30A 120V

Input cord length (ft) 8

Input cord length (m) 2.4

Full load runtime (minutes) 7 min. (2400w)

Half load runtime (minutes) 23 min. (1200w)

Expandable battery runtime Extended runtime supported via optional external battery packs

DC system voltage (VDC) 24

Battery recharge rate (included batteries) Less than 9 hours from 10% to 90%

UPS AC suppression joule rating 480

UPS AC suppression response time Instantaneous

EMI / RFI AC noise suppression Yes

UPS housing material PVC

Cooling method Fan

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full load) 82.4

Battery mode BTU / hr. (full load) 1219.3
