Description
Description

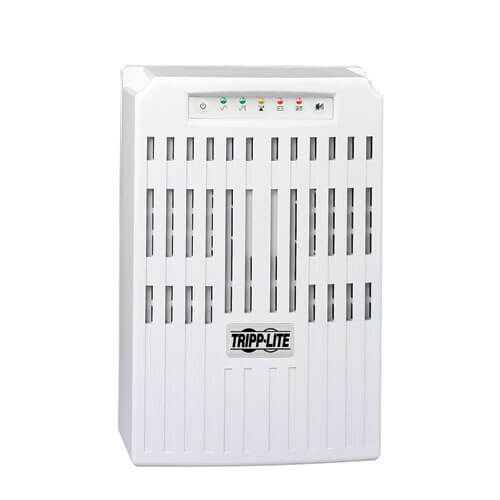

Tripp-Lite SMARTINT2200VS | SmartPro 230V 2.2kVA 1.6kW Line-Interactive UPS, Tower, Network Card Options, USB, DB9 Serial
Features
- SMARTINT2200VS line interactive UPS offers protection from blackouts, brownouts, overvoltages and surges
- 2200VA/1600W capacity
- Internal batteries support a half load of 1100VA for 19 minutes and a full load of 2200VA for 7 minutes
- Intelligent battery management system extends battery life
- Maintains regulated 230V nominal output during brownouts and overvoltages from 151 to 282V
- Includes 9 UPS supported outlets with 3 individually controllable load banks that can be powered off and back on again via software interface
- IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
- Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
- PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
- IP-based Auto Probe detects lost connectivity and restores service autonomously
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
- Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for immediate reboot of connected devices
- Supports Tripp Lite's WatchDog software application (requires optional WATCHDOGSW)
- Built-in accessory slot supports Network Management Card options; Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
- Emergency Power Off (EPO) interface with cable
- Multi-function audible alarms and set of 5 front panel LEDs
- Network-grade AC surge suppression
- Attractive gray color scheme
- Optional PDUBHV20 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
Specifications
Specifications
Overview
| UPC Code | 37332120304 |
|---|---|
| UPS Type | Line-Interactive |
Input
| Rated input current (Maximum Load) | 11.3A |
|---|---|
| Nominal Input Voltage(s) Supported | 230V AC |
| UPS Input Connection Type | C20 inlet |
| UPS Input Connection Description | IEC320-C20 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles |
| Input Phase | Single-Phase |
Output
| Output Volt Amp Capacity (VA) | 2200 |
|---|---|
| Output kVA Capacity (kVA) | 2.2 |
| Output Watt Capacity (Watts) | 1600 |
| Output kW Capacity (kW) | 1.6 |
| Power Factor | 0.7 |
| Nominal Voltage Details | 230v inverter nominal output voltage |
| Frequency Compatibility | 50 / 60 Hz |
| Frequency Compatibility Details | Automatic frequency selection |
| Output Voltage Regulation (Line Mode) | -0.11 |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
Battery
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Full Load Runtime (min.) | 7 min. (1600w) |
| Half Load Runtime (min.) | 19 min. (800w) |
| Expandable Runtime | No |
| DC System Voltage (VDC) | 48 |
Voltage Regulation
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151V to 282V |
|---|---|
| Overvoltage Correction | Input voltages between 245 and 282 are reduced by 12% |
User Interface, Alerts & Controls
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
|---|---|
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Audible Alarm | Audible alarm indicates power-failure, overload and low-battery conditions |
Surge / Noise Suppression
| UPS AC Suppression Joule Rating | 480 |
|---|---|
| UPS AC Suppression Response Time | Instantaneous |
| EMI / RFI AC Noise Suppression | Yes |
Communications
| Network Management Cards | SNMPWEBCARD ; TLNETCARD ; WEBCARDLX |
|---|---|
| Network Monitoring Port Description | Supports detailed monitoring of UPS and site power conditions; 2 USB ports; 1 DB9 serial and 1 DB9 contact closure port (4 total) |
| PowerAlert Software | For local monitoring via the UPS’s built-in communication ports; download PowerAlert Local software at https://www.tripplite.com/poweralert |
| Communications Cable | 2 USB and 2 DB9 cables included |
| WatchDog Compatibility | Supports Watchdog application; OS and hard-reboot restart options for remote applications |
| Communications Interface | Contact closure; DB9 Serial; Slot for SNMP/Web interface; USB |
Documents and Downloads
Documents and Downloads
- SMARTINT2200VS runtime chart
- Owner's Manual for SMARTINT2200VS/SMARTINT3000VS UPS
- PowerAlert Device Manager (PADM) 20.0.0 Command Line Interface User's Guide (English)
- UPS 230V Brochure (English)
- Integrated Solutions Brochure (English)
- UPS Systems 230V Brochure (Chinese)
- EC Declaration
- UPS Sizing
- Top 12 Questions to Consider When Choosing UPS Systems for Network/Server Applications
- UPS Systems Buying Guide
- Custom Products from Tripp Lite Are One Call Away
- Economy Mode Explained
- PADM20 High-Level Overview
- PowerAlert Device Manager v20
- PowerAlert Device Manager v20 for Networked Tripp Lite UPS Systems
- New Auto-Probe Feature on UPS Systems and PDUs
