Brand: Tripp-Lite
|
SKU:
565439

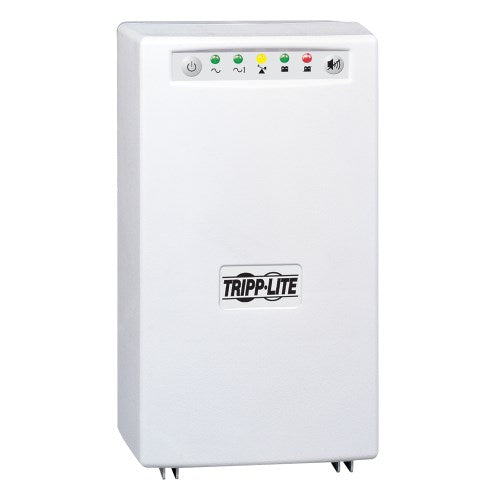

Tripp-Lite SMX1200XLHG | SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime
Regular price
$1,711.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SMX1200XLHG | SmartPro 230V 1kVA 750W Medical-Grade Line...
Regular price
$1,711.46
Unit price
Brand: Tripp-Lite
|
SKU:
565439
Regular price
$1,711.46
Unit price
Description
Description
Provides UL 60601-1
compliant, medical-grade 1kVA/750W power backup, ideal for use in patient-care vicinities.
The built-in isolation transformer offers full isolation while maintaining AC
surge protection in all modes.
Features
- Provides Ideal UPS Backup in Healthcare Facilities
- Compliant with UL 60601-1 standards for use in patient-care vicinities, when plugged into a hospital-grade outlet
- Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise
- Battery Backup and Full Surge Protection
- 27.5 minutes runtime for half load (375W); 11 minutes for full load (750W)
- All six hospital-grade outlets provide surge protection rated to 340 joules
- EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
- Resistant to electrostatic discharge
- LEDs and Audible Alarms Keep You Aware of Power Status
- Indicator lights on the front of the unit show you when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
- Audible alarms alert you to power failure, overload and low battery conditions; the alarm’s mute/quiet mode ensures patients are not disturbed
- Saves Your Files, Even When You’re Away
- Works with Tripp Lite PowerAlert software (included) to enable safe, unattended system shutdown and files saves during prolonged power failures
- Connects to your computer via either the DB9 port or USB port
Specifications
Specifications
Overview
| UPC Code | 37332140425 |
|---|---|
| UPS Type | Line-Interactive |
Input
| Rated input current (Maximum Load) | 5A |
|---|---|
| Nominal Input Voltage(s) Supported | 230V AC |
| UPS Input Connection Type | C14 inlet |
| UPS Input Cord Length (ft.) | 0.5 |
| Recommended Electrical Service | 10A 230V |
| Voltage Compatibility (VAC) | 230 |
Output
| Output Volt Amp Capacity (VA) | 1000 |
|---|---|
| Output Watt Capacity (Watts) | 750 |
| Nominal Voltage Details | 230v nominal inverter output voltage |
| Frequency Compatibility | 50 / 60 Hz |
| Frequency Compatibility Details | Automatic frequency selection |
| Output Voltage Regulation (Line Mode) | -18%, +8% |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Nominal Output Voltage(s) Supported | 220V; 230V; 240V |
| Output Receptacles | (6) C13 |
| Individually Controllable Load Banks | No |
Battery
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|---|
| Full Load Runtime (min.) | 11 min. (750w) |
| Half Load Runtime (min.) | 27.5 min. (375w) |
| Expandable Battery Runtime | Supports extended runtime with optional BP36V15-2U (limit 1) and BP36V42-3U external battery pack (multi-pack compatible) |
| Expandable Runtime | Yes |
Voltage Regulation
| Voltage Regulation Description | Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power over an input voltage range of 155 to 274V AC. |
|---|---|
| Overvoltage Correction | Input voltages between 245 and 274V AC are reduced by 9% |
User Interface, Alerts & Controls
| Switches | Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions |
|---|---|
| Audible Alarm | Audible Alarm is factory muted for silent operation; Audible alarm can be restored to indicate power failure, overload conditions and Low Battery events using our Free Power Alert UPS management software. |
| LED Indicators | 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status |
Surge / Noise Suppression
| UPS AC Suppression Joule Rating | 340 |
|---|---|
| EMI / RFI AC Noise Suppression | Yes |
| AC Suppression Response Time | Instantaneous |
Physical
| Cooling Method | UPS cooling via rear-exit fan |
|---|---|
| Installation Form Factors Supported with Included Accessories | Tower |
| Installation Form Factors Supported with Optional Accessories | Wallmount ( UPSWM - tower mounting kit) |
| Primary Form Factor | Tower |
| Primary UPS Depth (mm) | 231 |
| Primary UPS Height (mm) | 323 |
| Primary UPS Width (mm) | 191 |
| Shipping Dimensions (hwd / in.) | 18.50 x 12.20 x 13.38 |
| Shipping Weight (lbs.) | 48.8 |
| UPS Housing Material | PVC |
| UPS Power Module Dimensions (hwd; in.) | 12.7 x 7.5 x 9.1 |
| UPS Power Module Weight (kg) | 20.64 |
| UPS Power Module Weight (lbs.) | 45.5 |
Environmental
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
|---|---|
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Relative Humidity | 0 to 95%, non-condensing |
Communications
| Communications Interface | USB; DB9 Serial |
|---|
Documents and Downloads
Documents and Downloads
- SMX1200XLHG runtime chart
- Owner's Manual for SMX & OMNIX UPS Systems (Multi-Language)
- UPS 230V Brochure (English)
- Healthcare/Medical Solutions for Patient Care Vicinities Brochure (English)
- Integrated Solutions Brochure (English)
- UPS Systems 230V Brochure (Chinese)
- EC Declaration 1. SMX700HG 2. SMX1200XLHG 3. SMX700HGL 4. SMX1200XLHGL
- UPS Sizing
- Top 12 Questions to Consider When Choosing UPS Systems for Network/Server Applications
- UPS Systems Buying Guide
- Custom Products from Tripp Lite Are One Call Away
- Economy Mode Explained
- Download images for this product
