Brand: Tripp-Lite
|
SKU:
528119

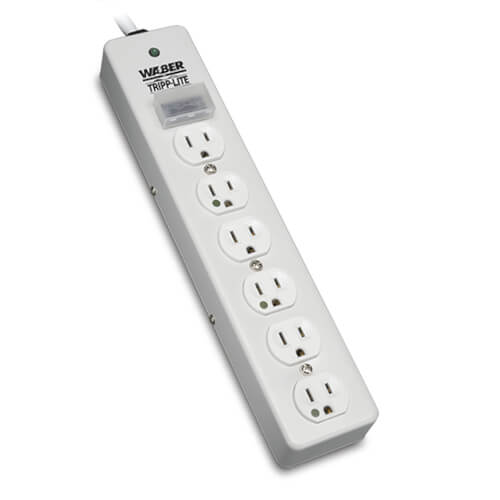

Tripp-Lite SPS606HGRA | NOT for Patient-Care Rooms - UL1363 Hospital-Grade Surge Protector with 6 Hospital-Grade Outlets, 6 ft. (1.83 m) Cord, 1050 Joules
Regular price
$183.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SPS606HGRA | NOT for Patient-Care Rooms - UL1363 Hospita...
Regular price
$183.79
Unit price
Description
Description
Need to use a surge suppressor behind a desk or in a confined spot? The SPS606HGRA provides surge suppression with the convenience of a space-saving, right-angle hospital-grade plug for placing the units in confined areas and keyhole mounting tabs and flanges for easy installation.
Features
- 1050-joule AC surge suppression rating
- Rugged all-metal housing withstands years of use without loss of ground path continuity
- 6 NEMA5-15R Hospital-Grade AC outlets
- 6-ft. AC cord with integrated, molded Hospital-Grade NEMA 5-15PHG plug
- Keyhole mounting tabs and flanges
- Switch safety cover prevents accidental shutoff
- 15A electrical capacity with built-in resettable circuit breaker
- 120 volt, 50/60Hz electrical compatibility
- Certified by UL (USA) and cUL (Canada)
- UL1449 3rd Edition listed
- Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Special Features
| Rotatable Outlets | No |
|---|
Specifications
Specifications
Package Includes
- SPS606HGRA Surge Suppressor
- Instruction manual with warranty information
Highlights
- 6 hospital-grade outlets
- 1050 joule rating
- 6-ft. cord with molded right angle hospital-grade plug
- All metal housing
Overview
| UPC Code | 37332167088.0 |
|---|
Input
| Nominal Input Voltage(s) Supported | 120V AC |
|---|---|
| Recommended Electrical Service | 120V (110-125V) |
| Voltage Compatibility (VAC) | 120 |
| Maximum Surge Amps | 19500 |
| Input Plug Type | NEMA 5-15P-HG |
| Input Cord Length (ft.) | 6 |
Output
| Frequency Compatibility | 50 / 60 Hz |
|---|---|
| Output (Watts) | 1800 |
| Output Receptacles | (6) 5-15R-HG |
| Circuit Breaker (amps) | 15 |
| Transformer Accommodation | (2) Yes |
| Right-Angle Outlets | No |
User Interface, Alerts & Controls
| Diagnostic LED(s) | Yes |
|---|---|
| Diagnostic LED Details | LINE POWER PRESENT (green) |
| Locking Switch Cover | Locking switch cover |
Surge / Noise Suppression
| AC Suppression Joule Rating | 1050 |
|---|---|
| AC Suppression Response Time | < 1 ns |
Dataline Surge Suppression
| Telephone/DSL Protection | No |
|---|---|
| Cable (Coax) Protection | No |
| Network (Ethernet) Protection | No |
Physical
| Antimicrobial Coating | No |
|---|---|
| Power Cord Color | Light Gray |
| Housing Color | White |
| Integrated Keyhole Mounting Slots | Yes |
| Material of Construction | Metal |
| Receptacle Color | White |
| Shipping Dimensions (hwd / in.) | 2.20 x 14.90 x 6.70 |
| Shipping Weight (lbs.) | 2.40 |
Standards & Compliance
| Canada | cUL (Series Number: AGIB12015SL) |
|---|---|
| UL1449 3rd Edition (AC Suppression) | UL1449 3rd Edition (Series Number: AGIB12015SL) |
| UL1363 (Power Tap) | UL1363 (Series Number: AGIB12015SL) |
Warranty
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
|---|
Documents and Downloads
Documents and Downloads
- Owner's Manual for PS/SPS Power Strips
- Healthcare/Medical Solutions for Patient Care Vicinities Brochure (English)
- Surge Protectors and Power Strips Brochure
- Solutions for Resident Rooms in Long-Term-Care Facilities Flyer B (English)
- Solutions for Patient-Care Vicinities Flyer (English)
- Surge Protector Buying Guide
- Product Videos
- Download images for this product
