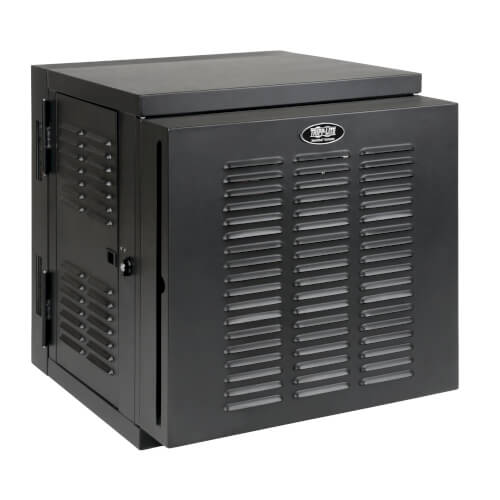

Tripp-Lite SRW12USNEMA | SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments, Hinged Back

Features

• Saves Valuable Workspace
• Perfect for factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other harsh, dirty work environments where you need equipment to be secure, organized, out of the way and protected from environmental contaminants
• Houses EIA-standard 19 in. rack equipment in 12U of space
• Maximum load capacity of 200 lbs (90.7 kgs)
• Superior Protection
• Built-in air filter, louvered vents and sealing door gaskets keep out dirt, dust, lint, oil, drips and splashes
• Removable air filter can be replaced with standard, off-the-shelf furnace filters
• Built-in high-performance door fans plug into standard NEMA 5-15R outlet (6 ft. power cord included)
• Sealed cable ports maintain dust and moisture resistance
• Hinged Cabinet for Convenient Access
• Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
• Reversible doors can open left or right to accommodate various rack configurations
• Keeps Important Equipment Secure
• Side panels and doors lock securely to help prevent damage, tampering or theft
• Vented panels and built-in fans provide generous airflow to keep equipment cool
• Convenient ports with removable covers and protective brush strips allow cable routing through rear door
• Easy Enclosure and Equipment Installation
• Ships fully assembled for quick installation
• Ready to mount to the wall
• Wall-mounting holes spaced 16 in. apart for standard wall stud placement
• Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels
• Rails support square-hole or 12-24 threaded-hole mounting
• Rack spaces numbered for easy reference
• Meets Payment Card Industry Standards
• Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
