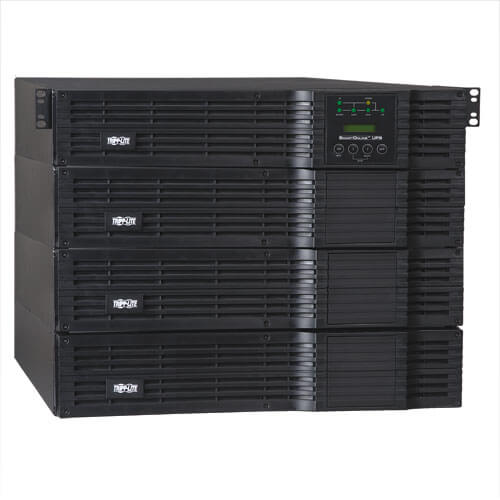

Tripp-Lite SU12000RT4UHW | SmartOnline 208/240 & 120V 12kVA 8.4kW Double-Conversion UPS, 8U, Extended Run, Network Card Slot, USB, DB9, Bypass, Hardwire

Features

• True on-line, double-conversion UPS provides pure, full-time sine wave AC output free of surges, voltage fluctuations and line noise
• 12,000VA / 8400W output power capacity with dual voltage output of 208/120V or 240/120V
• 4U high power density power module and 4U external battery pack support rackmount installation in 8 rack spaces (8U)
• Dual conversion UPS actively converts raw input from AC to DC, then back to perfect sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
• Hardwire input and output terminals are mounted on a detachable backplate with manual bypass switch to enable hot-swappable UPS replacement without powering off connected equipment
• Provides perfectly regulated, sine wave output power free of line noise, transient surges and frequency variation for the most efficient operation of critical servers, networking and telecommunications equipment
• Maintains output within 3% of selected 208/120V or 240/120V nominal voltage during brownouts and overvoltages
• Supports connected equipment during blackouts for 20/7 min. at half/full load levels; runtime is further expandable with optional external battery packs (Model BP192V18-4U)
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Intelligent battery management system extends battery life
• Highly efficient Economy-mode option
• Network interfaces support simultaneous communications via DB9 port, USB port and slot for network management card options
• Compatible with Tripp Lite UPS management card options WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• DB9 port supports RS-232 and dry contact messaging
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Built-in Emergency Power Off (EPO) interface with cable
• Supports hardwire output at 208V and 120V
• Split phase, four-conductor hardwire input connection on included detachable PDU
• Front panel LEDs and LCD readout with scroll button enables visual confirmation of all major UPS functions and current site electrical conditions
• Front panel switches enable power on/off control, self-test and alarm cancel functions
• Included adjustable mounting rails support installation in 4-post 19-in. rack enclosures
• Optional 2-9USTAND tower stand set supports upright tower installation
• Optional 2POSTRMKITHD accessory enables 2-post rackmount installation (requires 2)
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
