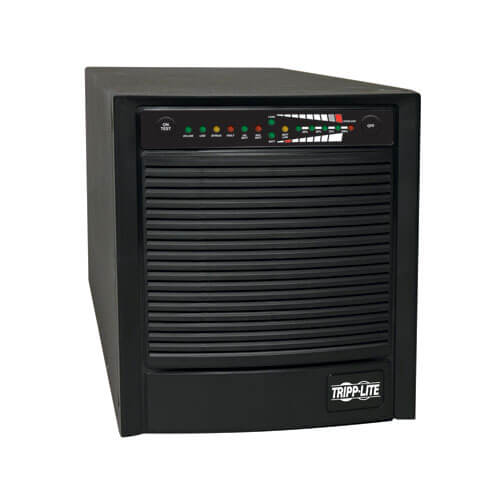

Tripp-Lite SU2200XLA | SmartOnline 120V 2.2kVA 1.6kW Double-Conversion UPS, Tower, Extended Run, Network Card Options, USB, DB9

Features

• True on-line, double conversion UPS provides a constant, pure sine wave AC output
• Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
• Zero transfer time, on-line, double-conversion and economy-mode operation supported
• Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems
• Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2%
• 2200VA/1600W output capacity with 7 total outlets (6 NEMA5-15/20R and 1 L5-20R)
• Two built-in individually switchable load banks, each with three outets, can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment
• Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load
• Runtime is expandable with BP48V60RT-3U and BP48V27-2US external battery packs
• Intelligent battery management system extends battery life
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration software (see manual)
• Attractive all-black upright tower format
• Simultaneous communications via HID-compliant USB port, serial port, and SNMP/web card slot
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• DB9 serial network interface supports RS-232 and contact closure messaging
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• Compatible with Tripp Lite's WatchDog Service Monitoring and Control Software (part# WATCHDOGSW)
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• Diagnostic LEDs
• $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
