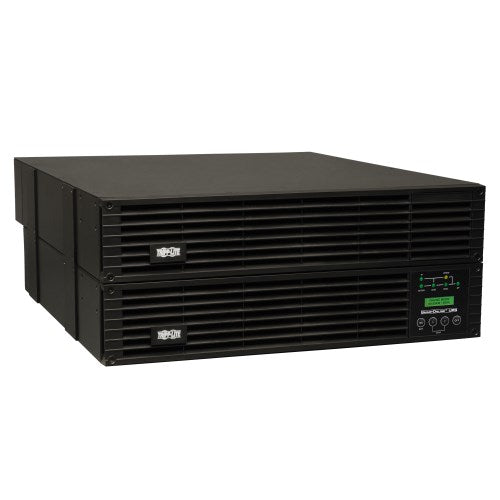

Tripp-Lite SU5000RT4UHV | SmartOnline 208/240V 5kVA 4.5kW Double-Conversion UPS, 4U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial

Features

• Tripp Lite SU5000RT4UHV 5000VA / 5kVA / 4500 watt on-line, double-conversion UPS system in a single 4U rack/tower compatible housing
• Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• L6-30P input plug; 2 L6-30R and 2 L6-20R UPS supported outlets
• Included rail kit supports 4U 19 inch rackmount installation in 4 post racks
• Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (1 required for SU5000RT4UHV)
• Optional 2-9USTAND supports upright tower placement (1 required for SU5000RT4UHV)
• Maximum installed rack depth of only 20.7 in. / 52.6cm inches
• Maintains full-time sine wave output within 2% of selected 200/208/220/230/240V nominal in double conversion mode
• Corrects brownouts to 156V at full load (100V at 50% load or less)
• Corrects overvoltages to 290V at full load (300V at 90% load or less)
• Supports 50/60Hz operation for worldwide frequency compatibility
• Double-conversion operation offers full-time AC to DC, then DC to AC conversion to maintain perfectly regulated sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
• High efficiency ECONOMY MODE operation significantly reduces BTU heat output and operating energy costs
• Network-grade AC surge and noise suppression
• Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232, USB and optional network management card interfaces
• UPS card slot supports network management card accessory options
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with support for a variety of control options to support advanced UPS settings and configurations
• LED/LCD display panel rotates for viewing in rackmount or tower configurations Supports Emergency Power Off (EPO) via built-in interface
• Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
• BP192V12-3U external battery packs are field replaceable and hot swappable
• Intelligent battery management system with temperature-compensated charging extends battery life
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
• $250,000 connected equipment insurance
