Brand: Tripp-Lite
|
SKU:
305011

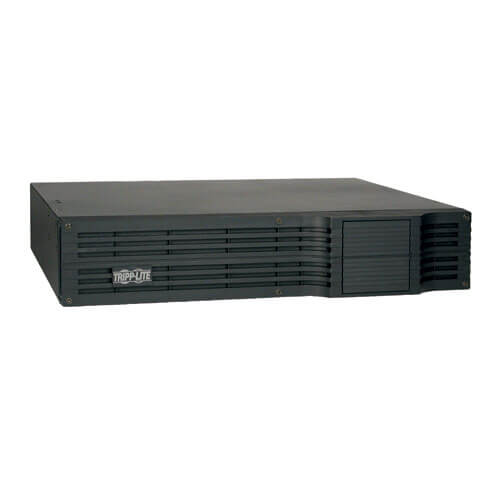

Tripp-Lite SU5000XFMRT2U | 5kVA / 5kW Step-Down Isolation Transformer 208V to 120V, 2U Rack-Mount, L6-30P, 5-15/20R, L6-30R
Regular price
$2,006.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Tripp-Lite SU5000XFMRT2U | 5kVA / 5kW Step-Down Isolation Transform...
Regular price
$2,006.39
Unit price
Description
Description
Tripp-Lite SU5000XFMRT2U | 5kVA / 5kW Step-Down Isolation Transformer 208V to 120V, 2U Rack-Mount, L6-30P, 5-15/20R, L6-30R
Features
- Step-down/isolation transformer converts high voltage 208V input from generator, utility or UPS to low voltage 120V output
- 5kVA/5,000 watt power handling capacity
- L6-30P input plug
- 10-ft. (3.05 m)/10 gauge input line cord
- 12 built-in NEMA 5-15/20R output receptacles accept common 5-15P and 5-20P equipment plugs. Built-in L6-30R outlet supports high voltage output.
- 4 built-in 20A circuit breakers protect against overload conditions
- Included mounting accessories support 2U installation in 4 post rack enclosures with a max depth requirement of only 20.75 inches
- Optional 2POSTRMKITWM enables 2 post relay-rack installation
- Optional 2-9USTAND accessory enables upright tower installation
Specifications
Specifications
Highlights
- 5kVA / 5,000 watt step-down isolation transformer converts 208V to 120V
- Simple plug-in installation with L6-30P input plug, 10-ft. (3.05 m) cord
- 12 NEMA 5-15/20R 120VAC outlets accommodate 5-15P and 5-20P equipment plugs, L6-30R outlet accommodates one high voltage plug
- Ideal means of converting UPS, utility, generator or other 208V input to 120VAC
- Supports 2U rackmount installation
Package Includes
- SU5000XFMRT2U step-down, isolation transformer
- 4 post rackmount accessories
- Owner's manual with warranty information
Overview
| UPC Code | 37332122087.0 |
|---|
Input
| Nominal Input Voltage(s) Supported | 208V AC |
|---|---|
| UPS Input Cord Length (ft.) | 10 |
| Recommended Electrical Service | 208V 30A |
| Maximum Input Amps | 24 |
| Input Connection Type | NEMA L6-30P |
| Voltage Compatibility (VAC) | 120 |
Output
| Frequency Compatibility | 60 Hz |
|---|---|
| Output (VA) | 5000 |
| Output (Watts) | 5000 |
| Output Receptacles | (12) 5-15/20R; (1) L6-30R |
| Output Nominal Voltage | 120/208V AC |
| Overload Protection | Includes 4 built-in 20A circuit breakers. Each breaker protects 3 5-15/20R outlets each. |
Physical
| Form Factors Supported | Rack/Tower (2U) |
|---|---|
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Material of Construction | Steel |
| Shipping Dimensions (hwd / in.) | 8.60 x 19.90 x 23.40 |
| Shipping Weight (lbs.) | 74.50 |
Environmental
| Relative Humidity | 0-95% (non-condensing) |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
