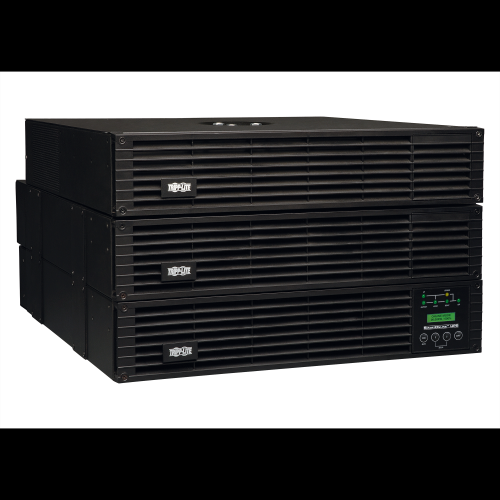

Tripp-Lite SU6000RT4UTF | SmartOnline 208/240 & 120V 6kVA 5.4kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, Outlets

Features

• Tripp Lite SU6000RT4UTF 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system in a 6U rack/tower compatible configuration (4U power module plus 2U low-voltage transformer; at 208V nominal, output is limited to 4992 watts)
• Full-time active power conditioning maintains clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• Detachable back panel PDU contains input line cord connection, output receptacles and manual bypass switch to support hot-swappable whole UPS replacement with no interruption to connected equipment
• L6-30P input plug
• UPS supported outlets include two L6-30R, two L6-20R, 8 5-15/20R and 4 5-15R outlets
• Included rail kit supports 4U 19 inch rackmount installation in 4 post racks
• Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (2 required for SU6000RT4UTF)
• Optional 2-9USTAND supports upright tower placement (1 required for SU6000RT4UTF)
• Maximum installed rack depth of only 21.8 in. / 55.3 cm
• Maintains full-time sine wave output within 2% of selected 208/240V and 120V nominal at 60Hz in double conversion mode
• Corrects brownouts to 156V at full load (100V at 50% load or less)
• Corrects overvoltages to 290V at full load (300V at 90% load or less)
• Double-conversion operation offers full-time AC to DC, then DC to AC conversion to maintain perfectly regulated sine wave AC output with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
• High efficiency ECONOMY MODE operation significantly reduces BTU heat output and operating energy costs
• Network-grade AC surge and noise suppression
• Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232, USB and optional network management card options
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS functions with support for a variety of control options to support advanced UPS settings and configurations
• LED/LCD display panel rotates for viewing in rackmount or tower configurations
• Supports Emergency Power Off (EPO) via built-in interface
• Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
• BP192V12-3U external battery packs are field replaceable and hot swappable
• Intelligent battery management system with temperature-compensated charging extends battery life
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
