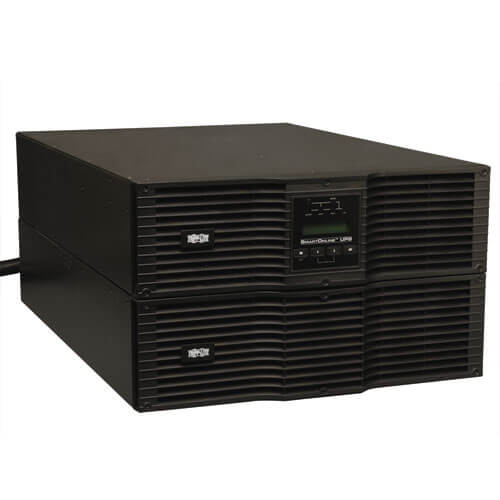

Tripp-Lite SU8000RT3U | SmartOnline 208/240V 8kVA 7.2kW Double-Conversion UPS, 6U Rack/Tower, Extended Run, Network Card Options, USB, DB9 Serial, Bypass Switch, NEMA outlets

Features

• Tripp Lite SU8000RT3U 8kVA / 8000VA / 7200 watt on-line, double-conversion UPS system in 6U total rack/tower configuration (3U UPS power module and 3U external battery pack)
• Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to connected networking equipment
• Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
• Hardwire input; 2 L6-30R and 4 L6-20R outlets
• Maximum installed rack depth of only 32.5 in. / 82.6cm inches
• Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions and line noise
• Double-conversion operation converts raw input from AC to DC, then resynthesizes output power back to perfect sine wave AC with enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS types
• Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low as 100V and overvoltages as high as 300V
• Supports 50/60Hz operation for worldwide frequency compatibility
• Expandable runtime is supported with optional BP240V10RT3U; BP240V787C-1PH external battery packs
• Intelligent battery management system with temperature-compensated charging extends battery life
• Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
• Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs
• Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
• USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert
• HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
• Includes slot for internal network management card options
• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD and RELAYIOCARD
• Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires removal of USB interface module)
• Supports Emergency Power Off (EPO) via built-in interface
• Included rail kit supports 6U 19 inch rackmount installation in 4 post racks
• Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks
• Optional 2-9USTAND supports upright tower placement
• Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters
• LED / LCD display panel rotates for viewing in rackmount or tower configurations
• Network-grade AC surge and noise suppression
• Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to short duration overload conditions
• Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
• External battery packs are field replaceable and hot swappable
