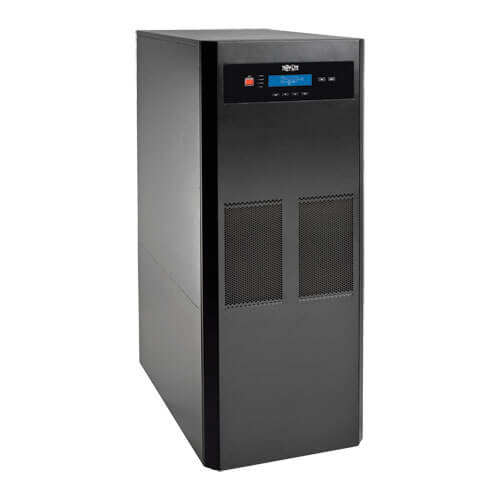

Tripp-Lite SUTX40K | SmartOnline SUTX Series 3-Phase 220/380V, 230/400V, 240/415V 40kVA 40kW On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option

Features

• VFI True On-Line Double-Conversion 3-Phase UPS System
• Provides fully regulated sine wave AC output for critical data center, LAN/WAN and distributed server room applications
• +/-1% output voltage regulation in online and battery modes
• 1.0 unit power factor offers 40kVA/40kW output capacity, allowing for more connected devices
• Supports 380/220V, 400/230V or 415/240V at 50/60 Hz in continued operation
• Wide input voltage window (228–477V) minimizes battery use and prolongs battery life
• Reliable Battery Backup with Expandable Runtime
• Supports half load for 15.5 min. and full load for 5.9 min. with standard internal battery
• Zero transfer time suitable for advanced network applications
• Expandable runtime with optional external battery packs, such as Tripp Lite’s BP480V200
• Restarts automatically after lengthy power outages
• IGBT Inverter Technology
• Produces output power with 1% THD to keep connected equipment functioning at its peak
• Low <4% THDi input rating and advanced IGBT rectifier enables 1:1 generator sizing, eliminating costly oversizing requirements for generators, breakers and cables
• Paralleling Capability
• Connect up to 4 units in parallel configuration for fault tolerance or increased capacity up to 160kVA
• Automatic and Manual Bypass
• Allows maintenance without removing power from attached loads
• Increases system reliability
• ECO Mode
• Operates at efficiency levels as high as 99% when input line conditions are favorable
• Optional Network Management Card
• Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• Communications Ports
• DB9 port enables data-saving unattended shutdown when used with Tripp Lite’s Power Alert software (available via free download at www.tripplite.com/poweralert)
• EPO port supports emergency shutdown in large facilities
• Single, Compact Cabinet
• May be installed with either single or dual AC sources for increased availability
