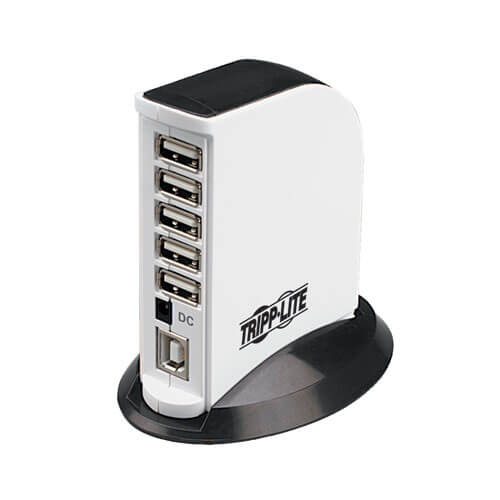

Tripp-Lite U222-007-R | 7-Port USB 2.0 Hub
Regular price
$58.74
Unit price
Brand: Tripp-Lite
|
SKU:
642802
Regular price
$58.74
Unit price
Description
Description
Tripp-Lite U222-007-R | 7-Port USB 2.0 Hub
Features
- USB2.0 7-Port Hub
- Supports data transfer rates up to 480Mbps
- Connect up to 7 USB devices to a single USB port on your computer
- Compact design is ideal for use with a laptop/notebook computer
- Does not require external power, software, or complicated set-up procedures
- Plug-and-play/hot-swappable allows you to add or remove a device at any time
- Per-port overcurrent protection
- Bus-powered or self-powered
- Supports USB 2.0 spec up to 500mA per port
- On bus-power, 500mA from the USB 2.0 computer port is shared between the hub ports
- The included external power supply provides 2.5A of power, to be shared between the hub ports (up to 500mA per port)
- Compact, multi-voltage power supply (100-240V) provided
- Compatible with all major operating systems
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|---|
| Driver Required | No |
Specifications
Specifications
Highlights
- Connect up to 7 USB 2.0 devices
- Hi-Speed 480Mbps data transfer
- Backward compatible with USB 1.1 devices
- Over-current protection safeguards connected equipment from overvoltages
- Supports USB 2.0 spec up to 500mA per port
- Includes base stand for upright positioning
- Compatible with all major operating systems
System Requirements
- USB 2.0 port
- Compatible with all major operating systems
Overview
| UPC Code | 37332126733.0 |
|---|---|
| Product Type | Hub |
| AC Adapter | Input: 100-240V; 50/60Hz; 0.5A; Output: 5V; 2.5A |
| Over Current Protection | Yes |
| Technology | USB 2.0 (High Speed); USB |
| Host Connector | USB A (MALE) |
Video
| Number of Monitors Supported | 0 |
|---|---|
| Extended Mode | No |
| Mirror Mode | No |
Data
| Data Ports | (7) USB A (FEMALE) |
|---|---|
| Data Ports Details | (7) USB-A - USB 2.0 |
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Plug(s) | NEMA 1-15P North America |
| Bus Powered | No |
Power
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.5A |
|---|---|
| External Power Supply Output Specs (V / A) | 5V / 2.5A |
User Interface, Alerts & Controls
| LED Indicators | Red - Power |
|---|
Physical
| Color | Black; White |
|---|---|
| Material of Construction | Plastic |
| Shipping Dimensions (hwd / in.) | 8.90 x 5.60 x 2.50 |
| Unit Dimensions (hwd / in.) | 0.94 x 3.4 x 2.7 |
| Unit Packaging Type | Clamshell |
| Unit Weight (lbs.) | 0.2 |
Environmental
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
|---|---|
| Storage Temperature Range | 14 to 176 °F (-10 to 80 °C) |
| Relative Humidity | 0% to 90 RH; Non-Condensing |
| BTUs | 8.5 BTU/Hr |
Connections
| Ports | 7 |
|---|---|
| Side A - Connector 1 | USB B (FEMALE) |
| Side B - Connector 1 | (7) USB A (FEMALE) |
Standards & Compliance
| Approvals | CE; FCC; RoHS; REACH |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
