Valcom S-422A-2 | Ceiling Speaker, for Provides Excellent Music and...
Description
Description

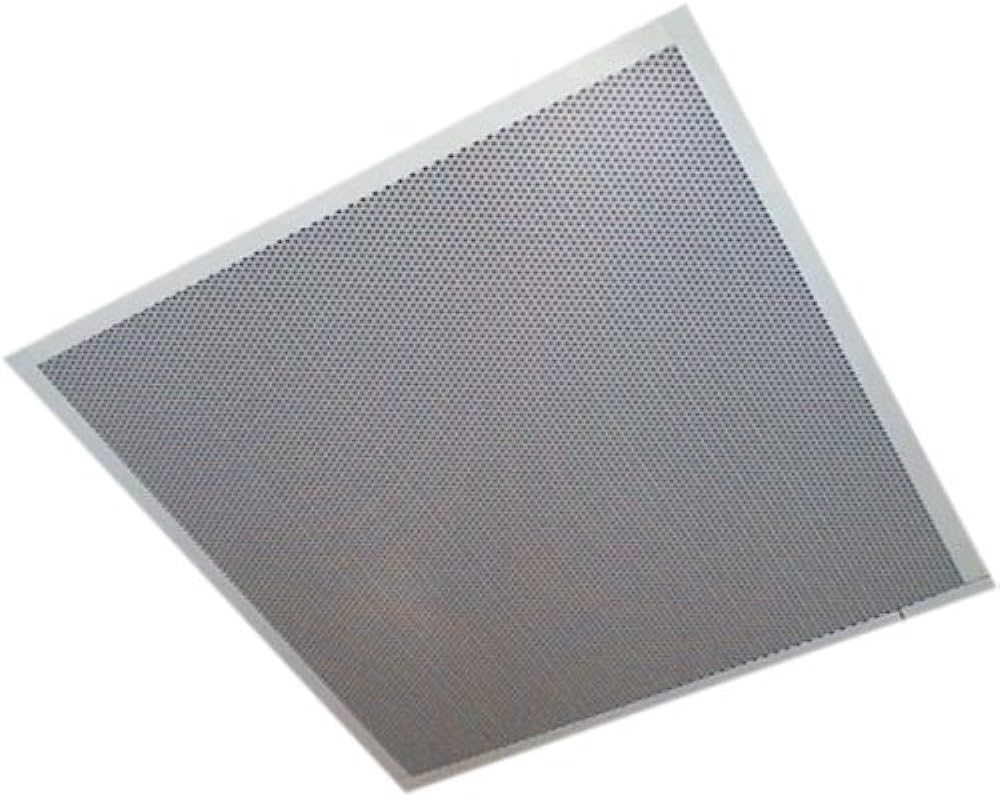

This inconspicuous lay-in speaker can be installed in suspended ceilings in minutes. The speaker provides excellent music and voice reproduction. The integral backbox has a three hour burn test rating (UL181) and the rugged lightweight construction eliminates the need for support bars. The speakers white perforated grille blends into the ceiling by providing the appearance of a standard air return. The speaker assembly features a perforated steel grill finished with a durable white baked on acrylic enamel finish, an 8 in. Full range speaker with a transformer that operates on 25 and 70 VAC speaker lines.
Valcom - S-422A-2 - Features
- Easy lay-in mounting
- Replaces a 2? X 2? or ½ of a 2? X 4? ceiling tile
- Integral backbox with three hour burn rating
- 25/70 Volt transformer
- Scuff-resistant perforated grille
- Durable white acrylic baked enamel finish
- Indoor use
- Packaged 2 per box
- Use a V-TBAR (ordered separately), when installing in a 2ft by 4ft ceiling tile
Specifications
Specifications
Valcom - S-422A-2 - Specifications
| Manufacturer Name | Valcom |
|---|---|
| Manufacturer Part Number | S-422A-2 |
| Item Description | Ceiling Speaker, for Provides Excellent Music and Voice Reproduction, 95 dB, 0 to 85% Non-Precipitating Humidity |
| Application | For Provides Excellent Music and Voice Reproduction |
| Decibels | 95 dB |
| Dimensions | LxWxD: 23.75 x 23.75 x 3.75 in. |
| Environment | 0 to 85% Non-Precipitating Humidity |
| Frequency Response | 80 Hz to 15 kHz |
| Impedance | 8 ? |
| Input | 25/70V |
| Mounting | Lay-In |
| Power Taps | 5, 2.5, 1.25, 0.75, 0.35 W |
| Power | 5 W |
| Product Type | Ceiling Speaker |
| Rated Watts | 5 W |
| Speaker Type | Lay-In |
| Type | Lay-in. Speaker |
| Voltage | 25 V; 70 V |
