Brand: Valcom
|
SKU:
593675

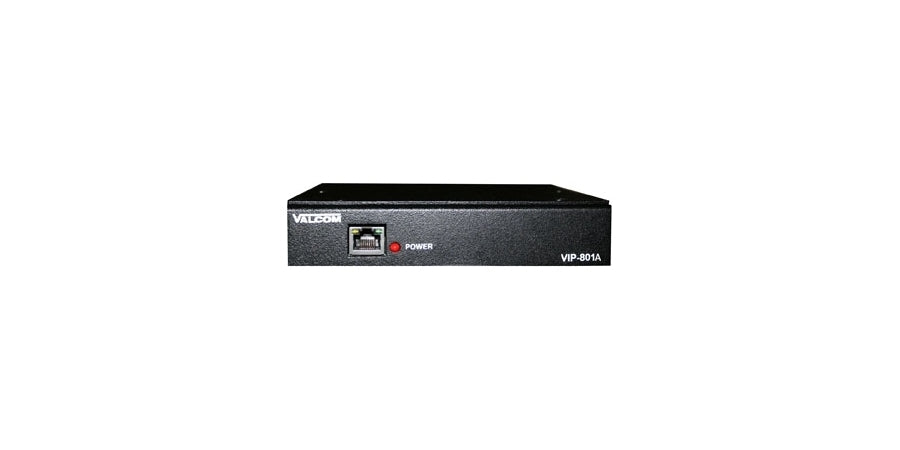

Valcom VIP-801A-IC-V4 | Audio Port, Black, Powder Coated, for For wall or table mounting, 24 VDC, RJ45 Connection, Steel
Regular price
$674.27
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Valcom VIP-801A-IC-V4 | Audio Port, Black, Powder Coated, for For w...
Regular price
$674.27
Unit price
Brand: Valcom
|
SKU:
593675
Regular price
$674.27
Unit price
Description
Description
Valcom VIP-801A-IC-V4 | Audio Port, Black, Powder Coated, for For wall or table mounting, 24 VDC, RJ45 Connection, Steel
The VIP-801A is one of Valcoms Audio Port Gateways that enables voice access to a single zone of one-way paging over an IP-based network. This allows page zone extension anywhere on the network allowing the page zone to be extended anywhere network connectivity is available. It can also be programmed as a SIP device for connectivity to virtually any VoIP telephone system.
Valcom - VIP-801A-IC-V4 - Features
- InformaCast® compliant
- Audio outputs
- Programmable Form A or C Relay Closures
- Programmable contact closure inputs
- RJ-45 jack for network connection
- Front panel activity LED
- Provides audio for up to 40 Valcom one-way self-amplified speaker assemblies
- Output control contact closure provided during paging output
- Compatible with 25 or 70 Volt amplifiers
- Barrel jack for optional DC power
Specifications
Specifications
Valcom - VIP-801A-IC-V4 - Specifications
| Manufacturer Name | Valcom |
|---|---|
| Manufacturer Part Number | VIP-801A-IC-V4 |
| Item Description | Audio Port, Black, Powder Coated, for For wall or table mounting, 24 VDC, RJ45 Connection, Steel |
| Amperage | 325 mA |
| CSA | FT4 Vertical Flame Test - Cables in Cable Trays |
| Color | Black |
| Components | Cover |
| Connection | RJ-45 |
| Dimensions | LxWxH: 5-1/4 x 6.13 x 1.38 in. |
| Finish | Powder Coated |
| Impedance | 600 Ohm Input, 50 Ohm Output |
| Material | Steel |
| Mounting | Table, Wall |
| Product Type | IP Gateway Network Audio Port |
| Sensitivity | -21 dBm |
| Size | WxHxD: 6.75 x 1.75 x 9.5 in. |
| Type | Networked Audio Port |
| Voltage Rating | 24 VDC |
