Vicon FMC-TRRM-B | Media Converter, Copper to Fiber, 2-Port, Rack-M...
Regular price
$792.90
Unit price
Brand: Vicon
|
SKU:
622366
Regular price
$792.90
Unit price
Description
Description

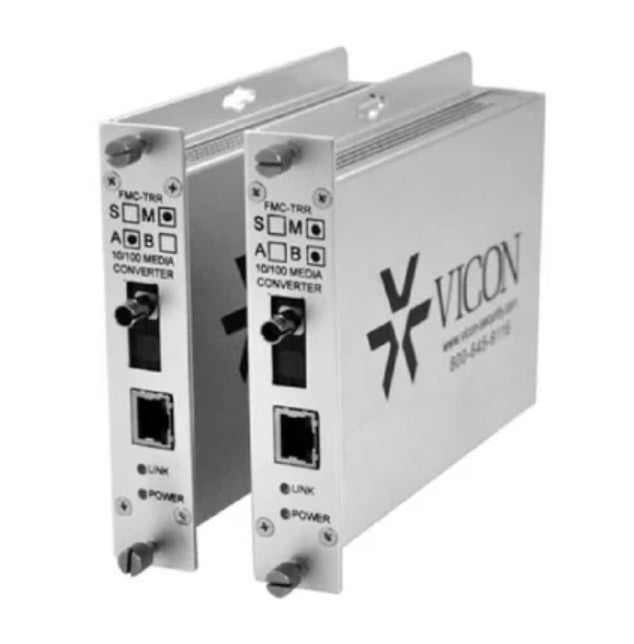

Vicon FMC-TRRM-B | Media Converter, Copper to Fiber, 2-Port, Rack-Mount
The FMC series provides a low-cost and effective solution for extending the range of your video network. The FMC-TRRM-A and B Ethernet 2 port media converters are designed to transmit and receive 10/100 Mbps Ethernet data over multimode optical fiber. The electrical interface will auto-negotiate to a 10 Mbps or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate.
Specifications
Specifications
Vicon - FMC-TRRM-B - Product Categories
- Networking and Wireless
- Networking
- LAN
- Media Converters
Vicon - FMC-TRRM-B - Specifications
| Manufacturer Part Number | FMC-TRRM-B |
|---|---|
| Manufacturer | Vicon |
| Connector Type | Utilizes ST Connectors |
| Conversion | Copper to Fiber |
| Current Rating | 1 A |
| Data Rate | 10/100 Mbps |
| Depth | 6.1 in. |
| Enclosure Rating | NEMA |
| Height | 1.1 in. |
| Maximum Distance | 3 km |
| Mounting Location | Rack-mount |
| Network Technology | Ethernet |
| Number of Ports | 2 |
| Operating Temperature - Maximum | 75 C |
| Operating Temperature - Minimum | -40 C |
| Port Configuration | 1 x RJ45, 1 x ST |
| Product Type | Media Converter |
| Special Feature | Multimode, Single Fiber |
| Special Rating | IEEE 802.3, CE, FCC Class A, UL |
| Voltage | 9 VDC |
| Width | 5.3 in. |
