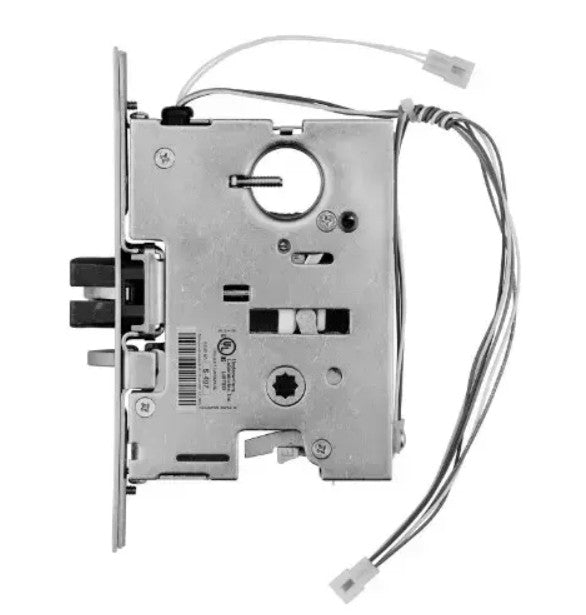

Von Duprin E7500 US32D 12VDC FSE | Electric Mortise Lock, Narrow Stile Application, 12 VDC, US32D Satin Stainless Steel

E7500 Electric mortise lock has all the versatility and advantages of the standard mortise lock device, plus the advantage of being electrically controlled by a remote switching device, an access control system or an automatic fire alarm system. The E7500 is available for use with the 98/99 Series devices. The E7500 controls the locking of the outside trim. When unlocked, the door remain latched, preserving the fire rating of the door and making it particularly useful where codes permit locking, but require unlocking during a fire emergency. The E7500 locks and unlocks electrically and cannot be locked or unlocked mechanically. The outside trim cylinder retracts the latch bolt for mechanical override, night latch function. An SPDT signal monitors the outside trim condition (locked or unlocked) and a second SPDT signal switch to monitor the latch bolt.
