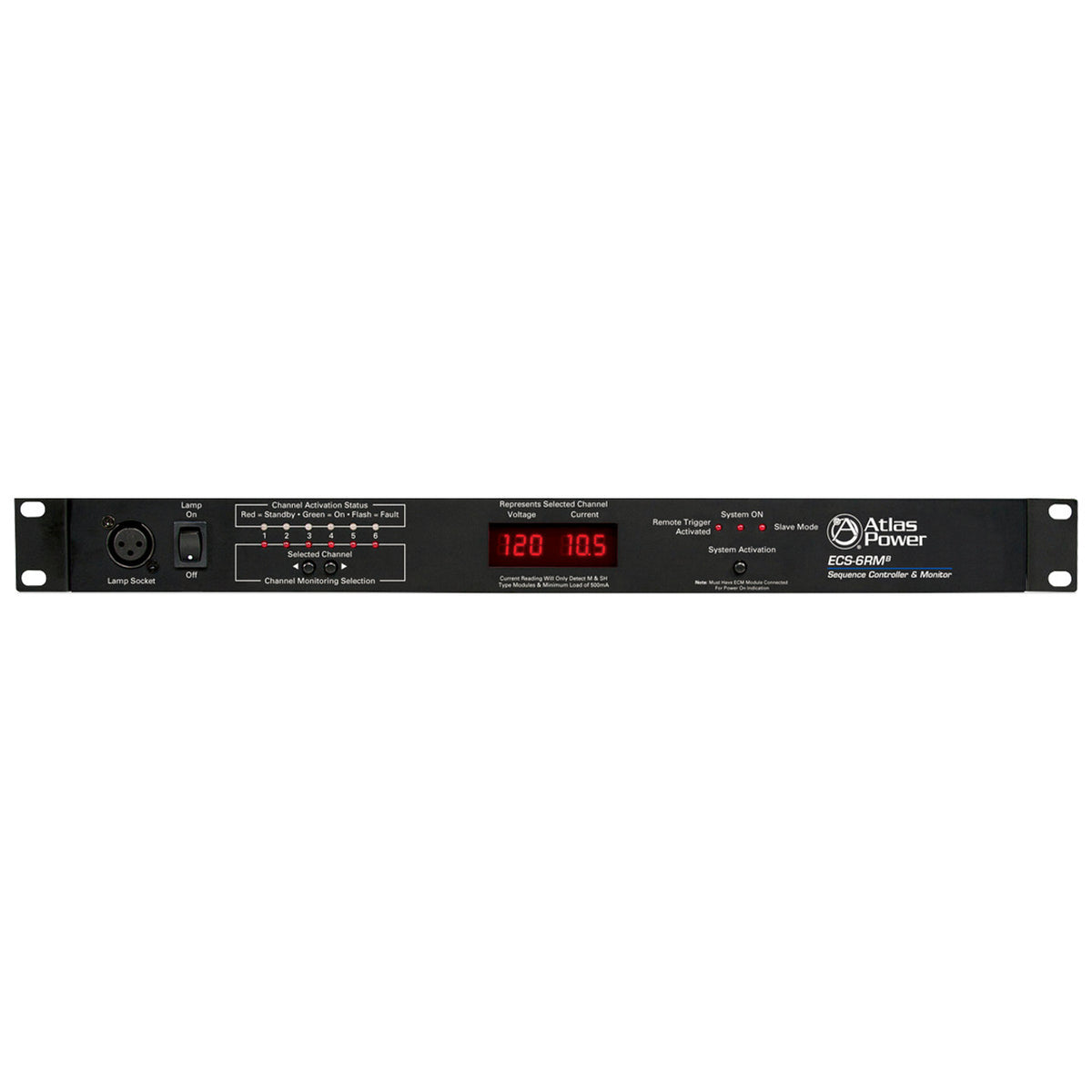

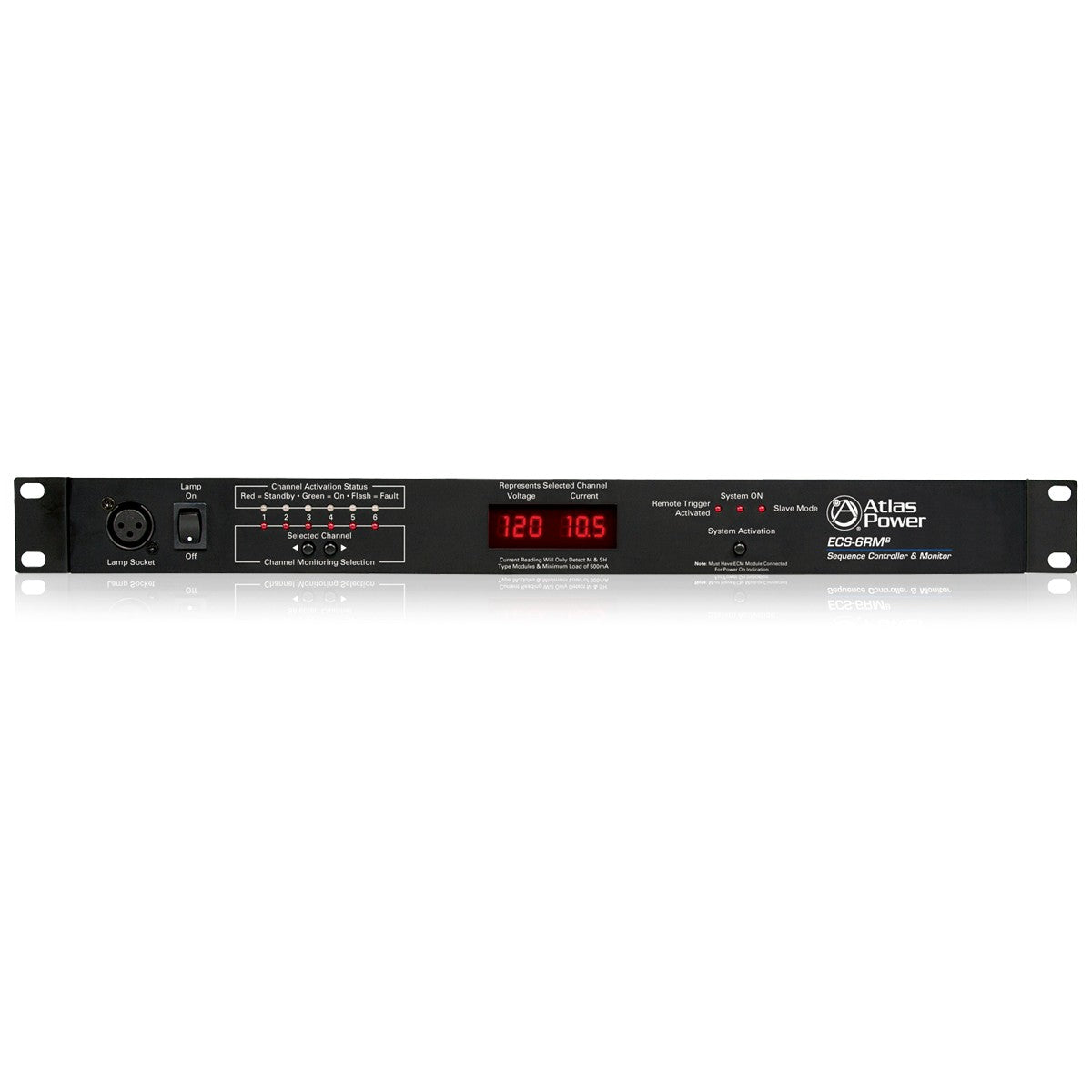

Atlas Sound ECS-6RM | AC Sequence Controller and Monitor
Description
Description
The ECS-6RM modular system has been designed to meet most installation requirements for AC power distribution, equipment power conditioning and surge suppression protection.
The compact 1 RU unit features six sequential timing sections that can be activated via the unit, or remotely. Up to three ECS-6RM units can be daisy chained together with independent trigger timing settings giving you a total of 18 sequence triggered outlets.
The ECS-6RM unit is the activation controller/monitor portion of the system and requires a 120V AC Mains ECM (Electrical Controlled Module) module for each triggered output.
Atlas Sound - ECS-6RM - Features
- Six Sequencer Timing Sections, 1, 3, or 6 Second Intervals
- Six Independent ECM Connections
- Six Independent Contact Closures
- Front Panel Digital AC Mains Voltage and Current Meter
- External Switch Sequence Trigger Activation
- External DCV Sequence Trigger Activation 5-24VDC
- Abnormal AC Line Voltage Indicator
- Front & Rear XLR Connector for 12VDC Gooseneck LED Lamp (AP-GNL18)
Specifications
Specifications
Atlas Sound - ECS-6RM - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Video Display Equipment
- Video Display Equipment Accessories
- AC Power Distribution
- Electrical Power Sequencers
Atlas Sound - ECS-6RM - Related Products
- ECS-3 - 15A Power Sequencer and Conditioner
- ECS-3 - AC Sequence Controller
- ECS-204 - 20A Power Conditioner & Sequencer
- AP-GNL18 - Atlas Power 16 inch Goose Neck LED Lamp
Atlas Sound - ECS-6RM - Specifications
| Sequencer Sections | 6 |
|---|---|
| Light | XLR Socket to Provide 12VDC for Optional 16" Gooseneck Lamp AP-GNL18 |
| Sequence Timing | Unit Settings of 1, 3 or 6 Seconds |
| Power Supply | External Wide Rage 100V–240VAC, UL Approval |
| Power Consumption | .8 Watts |
| RoHS Compliant | Yes |
| LED Light Switch | Two Position On/Off |
| Activation Switch | Momentary |
| AC Mains Voltmeter | Three Digits Digital |
| Indicators | System On, External Trigger Mode, Slave Mode |
| Remote Activation Trigger | 5-24VDC Continuous 10 mA, Switch Contacts, Euro/Phoenix Type Connector |
| Height | 1.75" (44.45mm) |
| Width | 19" (482.6mm) |
| Depth | 10" (254mm) |
| UNSPSC Code | 52161600 |
