TOA Electronics T-02S | Unbalanced Line Input Module for Music-on-H...
Description
Description

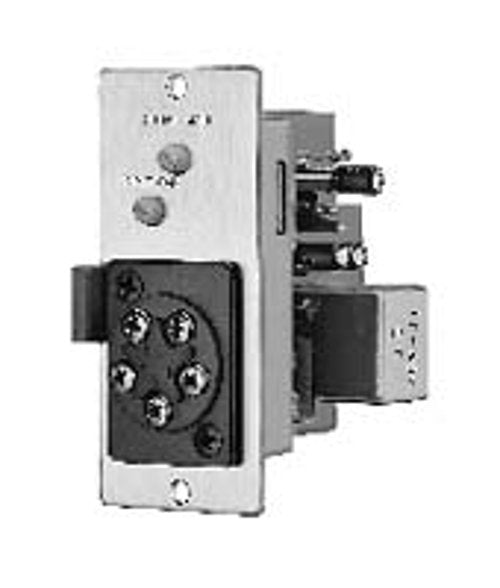

The T-O2S is 9-line input module to be used in conjunction with the 900 series components and other TOA equipment. It has a transformer unbalanced line input with Music-On-Hold (MOH) output and screw terminals, and gain controls.
For unbalanced, line level equipment. Transformer-isolated output of module’s input signal for feeding remote equipment such as mixers, amps, tape recorders and telephone system music-on-hold inputs.
Specifications
Specifications
Specifications
- Power Source: 24VDC (supplied from the main frame)
- Current Consumption: 38mA
- Sensitivity AUX Input: Adjustable -20 - 0dB
- Line Output: Adjustable -16 - 0dB (@ 600? terminated, input: -20 dB)
- Source Impedance AUX Input : 220k?, unbalanced transformer—isolated
- Line Output: 600?, balanced transformer—isolated
- Frequency Response: 20Hz — 20kHz +/- 2.5dB
- Distortion: 0.1% or less (1kHz, output: 0dB)
- Noise Level: -90dB (20Hz — 20kHz BPF)
- Gain Mix bus: -20 - 0dB / slave: 4 - 20dB
- Connector: 5 Screw terminals
- Dimensions: 35mm (W) X 78mm (H) X 88mm (D) (1.38" X 3.07” X 3.46")
- Weight Max. 105g (0.23lbs)
Additional Specifications
| UNSPSC Code | 52161600 |
|---|
