Brand: Toa Electronics Inc.
|
SKU:
320196

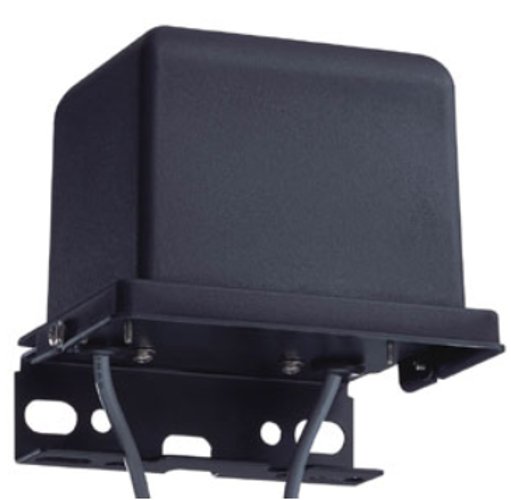

TOA Electronics MT-200 | 200W Matching Transformer for HX-5 Series Speakers
Regular price
$217.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
TOA Electronics MT-200 | 200W Matching Transformer for HX-5 Series ...
Regular price
$217.90
Unit price
Brand: Toa Electronics Inc.
|
SKU:
320196
Regular price
$217.90
Unit price
Shipping calculated at checkout.
Description
Description
The TOA MT-200 is a 200 watt, 70V transformer for HX-5 speakers.
The MT-200 is a matching transformer for the HX-5 series speaker systems, and can be used both indoors and outdoors.
Includes
- Speaker mounting bolt (M8) with washer x2
Specifications
- Rated Input: 200W
- Primary Impedance
- 100V line: 50? (200W), 83? (120W), 167? (60W)
- 70V line: 25? (200W), 50? (100W), 83? (60W), 167? (30W)
- Secondary Impedance: 8?
- Water Protection: IPX4 (the tilt angle must be within 45°)
- Cover: Polypropylene
- Mounting bracket: Stainless steel (SUS304)
- Dimensions: 164 (W) × 141 (H) × 129mm (D)
- Weight: 2.8kgs
Specifications
Specifications
Includes
- Speaker mounting bolt (M8) with washer x2
Specifications
- Rated Input: 200W
- Primary Impedance
- 100V line: 50? (200W), 83? (120W), 167? (60W)
- 70V line: 25? (200W), 50? (100W), 83? (60W), 167? (30W)
- Secondary Impedance: 8?
- Water Protection: IPX4 (the tilt angle must be within 45°)
- Cover: Polypropylene
- Mounting bracket: Stainless steel (SUS304)
- Dimensions: 164 (W) × 141 (H) × 129mm (D)
- Weight: 2.8kgs
Additional Specifications
| Type | SPEAKER |
|---|---|
| UNSPSC Code | 52161600 |
