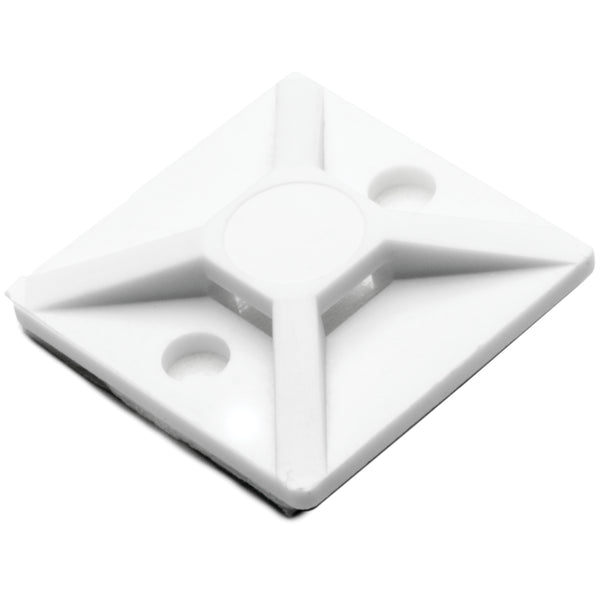

HellermannTyton MB3A10C2 | Adhesive Cable Tie Mount, .75" x .75", .14" Max Tie Width, .12" Hole Dia, PA66/SR T50, White, 100/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton MB3A10C2 | Adhesive Cable Tie Mount, .75" x .7...
Description
Description
HellermannTyton Adhesive Cable Tie Mounting Bases are used with T18 through T150 Series cable ties to provide stability when securing bundles. The mounts are installed using the adhesive backing and/or by securing two or four screws. The 4-way opening allows the cable ties to be inserted parallel or perpendicular to the wire bundles. Rubber-based adhesive allows for a permanent bond to most surfaces.
MB3A adhesive mounts are for use with HellermannTyton T18 - T30 Series cable ties to provide stability when securing bundles. The rubber adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - MB3A10C2 - Features
- Durable adhesive achieves high pull-off force and is unaffected by vibration.
- 4-way opening allows cable ties to be installed parallel or perpendicular to bundles.
- Predrilled holes extend mounting options and security.
- Extended adhesive liner is eay to remove quickly.
- Clip can be installed by hand – no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
Specifications
Specifications
HellermannTyton - MB3A10C2 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Tie Mounts
- Adhesive Mounting Bases
HellermannTyton - MB3A10C2 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| UNSPSC Code | 39130000 |
HellermannTyton - MB3A10C2 - Base Data
| Article Number | 151-28718 |
|---|---|
| Type | MB3A |
| Color | White (WH) |
| Quantity Per | bag |
| Short Description | Rubber Adhesive Cable Tie Mount, 0.75" x 0.75", Use With T18-T30 Cable Tie, PA66, White, 100/pkg |
| Global Part Name | MB3A-PA66-WH |
HellermannTyton - MB3A10C2 - Product Dimensions
| Length L (Imperial) | 0.75 |
|---|---|
| Length L (Metric) | 19 |
| Fixation Method | Screw Mounting and Adhesive |
| Width W (Imperial) | 0.75 |
| Width W (Metric) | 19 |
| Cable Ties | T18 - T30 |
| Height H (Imperial) | 0.18 |
| Height H (Metric) | 4.6 |
| Cable Tie Width Max (Imperial) | 0.14 |
| Cable Tie Width Max (Metric) | 3.6 |
| Mounting Hole Diameter D (Imperial) | 0.12 |
| Mounting Hole Diameter D (Metric) | 3.0 mm |
| Mounting Hole Diameter D Max (Metric) | 3 |
| Mounting Hole Centers (Imperial) | 0.52 |
HellermannTyton - MB3A10C2 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - MB3A10C2 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Adhesive | Synthetic rubber with base of polyethylene foam |
| Flammability | UL 94 V-2 (excluding adhesive) |
| UV Resistant (Yes/No) | No |
| Adhesive Operating Temperature | 0°F to +150°F (-18 °C to +66 °C) |
| Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
