Brand: Alpha Wire
|
SKU:
2ACD-1204FB-TPE-A

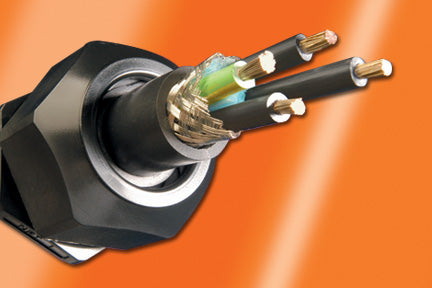

Alpha Wire VF16012 BK199 | 4 Conductor Multi-Conductor Cable Black 12 AWG Foil, Braid 1000.0' (304.8m)
Regular price
$11.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Alpha Wire VF16012 BK199 | 4 Conductor Multi-Conductor Cable Black ...
Regular price
$11.32
Unit price
Brand: Alpha Wire
|
SKU:
2ACD-1204FB-TPE-A
Regular price
$11.32
Unit price
Shipping calculated at checkout.
Description
Description
Alpha Wire VF16012 BK199 - VFD - 12-4C STR TNC XLP TYPE TC VFD
Key Features
- Rated for use at temperatures as low as -40°C
- UL and CSA Tray Cable approved
- Sunlight resistance and excellent resistance to solvents and oils
- TPE jacket
- 5x Static Bend Radius
Specifications
Specifications
Specifications
| Component 1 | 4 X 1 COND |
|---|---|
| Conductor | 12 (65/30) AWG TC |
| Insulation | 0.046" Wall, Nom. XLPE |
| Separator | Paper Tape, 10% Overlap, Min. |
| Cable Assembly | 4 Components Cabled |
| Twists: | 1.8 Twists/foot (min) |
| Shield: | A/P/A Tape, 25% Overlap, Min. |
| Drain Wire | 12 (65/30) AWG TC |
| Braid | TC,85% Coverage, Min. |
| Jacket | 0.065" Wall, Nom.,TPE |
| Color(s) | BLACK |
| Jacket Separator | Tissue Tape, 25% Overlap, Min. |
| ALPHA WIRE-L VF16010 VFD CABLE 4C12 SHIELDED (UL)1000V FLEXIBLE MOTOR SUPPLY CABLE 600V TYPETC-ER -40C RHW-2 CDRS XLPE/TPE 90C DRY/WET SUN RESOIL I/II OR 12 AWG C(UL) CIC CONTROL/TC -40CSUN RES 90C WET/DRY XLPE INS FT4CE ROHS (DATE CODE) (SEQ FOOTAGE)[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] | |
| EU Directive 2002/95/EC(RoHS): | All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
| REACH Regulation (EC 1907/2006): | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
| Packaging | Flange x Traverse x Barrel (inches) |
| Temperature Range | -40 to 90°C |
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 269 Lbs, Maximum |
| Sunlight Resistance | Yes |
| Copper Weight | 139 Lbs/1000Ft |
| Voltage Rating | 1000 VRMS |
| Characteristic Impedance | 71 ? |
| Inductance | 0.197 µH/ft, Nominal |
| Mutual Capacitance | 26 pf/ft @1 kHz, Nominal |
| Ground Capacitance | 47 pf/ft @1 kHz, Nominal |
| Conductor DCR | 1.76 ?/1000ft @20°C, Nominal |
