Brand: Altronix | SKU: 493136

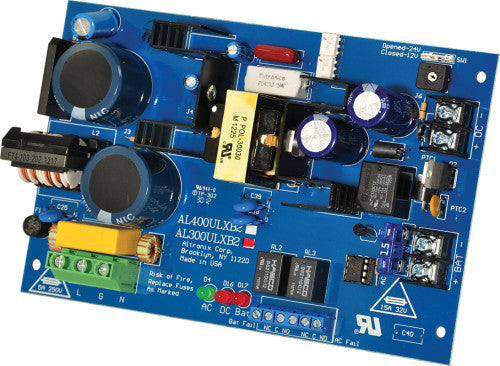

Altronix AL300ULXB2 | Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 115VAC, Board

$214.88

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL300ULXB2 UL Recognized power supply/charger converts a 115VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Specifications

Dimensions (approximate)

4.5"W x 7.1"L x 1.44"H (114 mm W x 180 mm L x 37 mm H).

Input

Input 115VAC 60Hz, 3.5A.
Input fuse rated @ 3.5A/250V.

Output

12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603):
12VDC = 10VDC-13.2VDC.
24VDC = 20VDC-26.4VDC.
2.5A total supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).

Visual Indicators

AC input, DC output and Battery LED indicators.

Weights (approximate)

Product Weight	0.65 Lbs. (0.29 kg).
Shipping Weight	0.8 Lbs. (0.36 kg).

Documents and Downloads
