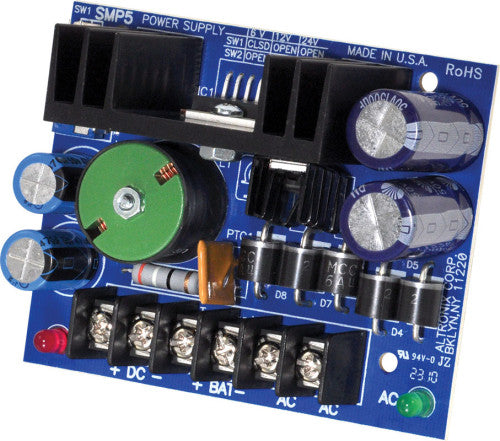

Altronix SMP5 | Power Supply Charger, Single Output, 6/12/24VDC @ 4A, 24/28VAC, Board

$73.10

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

SMP5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Specifications

Dimensions (approximate)

3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).

Input

6VDC applications use TP1640.
12VDC applications use T2428100.
24VDC applications use T2428175.

Output

6VDC, 12VDC or 24VDC selectable output.
4A supply current.
Filtered and electronically regulated outputs.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Zero voltage drop when switching over to battery backup.

Visual Indicators

AC input and DC output LED indicators.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
6VDC: 13 BTU/Hr.
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement:
6VDC: 55.2VA.
12VDC/24VDC: 115VA.

Weights (approximate)

Product Weight	0.35 Lbs. (0.158 kg).
Shipping Weight	0.45 Lbs. (0.204 kg).
