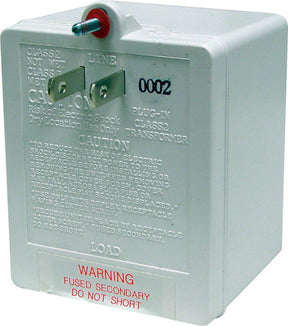

Altronix TP2420 | Plugin Transformer, 24VAC @ 20VA
Regular price
$22.42
Unit price
Brand: Altronix
|
SKU:
403773
Regular price
$22.42
Unit price
Description
Description
Altronix TP2420 transformer provides 24VAC with a total of 0.8A output current.
Specifications
Specifications
Dimensions (approximate)
- 3.35"W x 2.5"L x 1.884"H (85.1 mm W x 63.5 mm L x 48 mm H).
Input
- 115VAC 50/60 Hz, 0.23A.
Output
- 24VAC/20VA (0.8A) output.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 10 BTU/Hr.
- System AC input VA requirement: 26.45VA.
Weights (approximate)
| Product Weight | 0.85 Lbs. (0.386 kg). |
|---|---|
| Shipping Weight | 1.15 Lbs. (0.521 kg). |
