Brand: Altronix | SKU: 258187

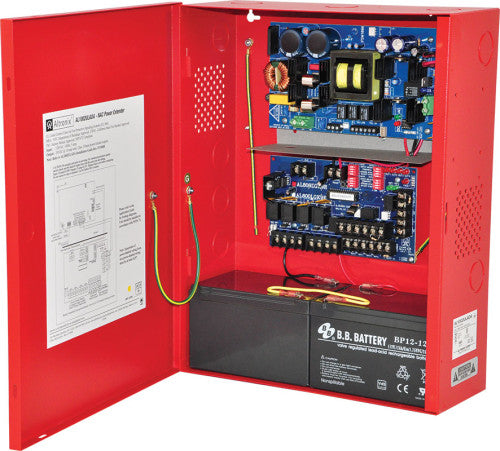

Altronix AL1002ULADA | NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 10A, 120VAC, Red BC400 Enclosure

$625.23

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix AL1002ULADA is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Accommodates up to two (2) 12VDC/12AH Batteries.
Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
1.125" and 1.375" combination knockouts.

Input

Voltage:
120VAC, 60Hz, 5A.
Two (2) Class A or two (2) Class B inputs.
Two (2) NC dry contact trigger inputs.
Input Ratings (INP1 and INP2):
8-30VDC 6.5mA max from FACP.
12V 6.5mA, 24V 6.5mA from FACP.

Output

Voltage:
24VDC power-limited outputs.
Current:
10A max. total alarm current.
2.5A max. current per output.
Auxiliary:
1A.
Other:
Thermal and short circuit protection with auto reset.
Filtered and regulated outputs.
Programmable Supervised Indicating Circuit Outputs:
Four (4) Class B, or Two (2) Class A, or
One (1) and Two (2) Class B.

Back-up Battery (not included)

Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.

Supervision

AC Failure: Form “C” contacts.
Battery: Form “C” contacts.

Indicators (LED)

AC Power (Green): Input voltage is present.
DC Output (Red): Powered.
Logic Board (Red and Green): Output status.

Weights (approximate)

Product Weight	12 Lbs. (5.44 kg).
Shipping Weight	13.3 Lbs. (6.03 kg).

Agency Listings

UL Listed For: Control Units and Accessories for Fire Alarm Systems (UL864)	https://iq.ulprospector.com/en/profile?e=152861
CSFM - California State Fire Marshal Approved	https://www.altronix.com/library/pdf/csfm_files/1335-0110.PDF
