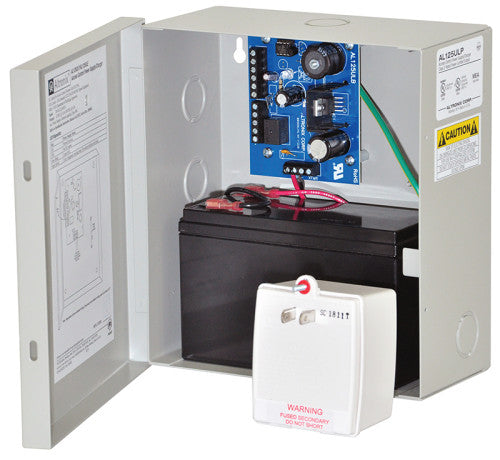

Altronix AL125ULP | Access Control Power Supply Charger, 2 PTC Class 2 Outputs, 12/24VDC @ 1A, 24VAC, BC100 Enclosure, includes Plugin Transformer

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/4AH Batteries.
• Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• 24VAC, 40VA from UL Listed, Class 2 transformer.
• Access control trigger input.

Output

• 12VDC @ 1A or 24VDC @ 0.5A selectable outputs.
• Two (2) Class 2 Rated power limited outputs.
• Fail-Safe/Fail-Secure lock output (switched).
• Auxiliary power output (unswitched).
• PTC protected outputs, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.

Supervision

• Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).

Indicator (LED)

• Unit Status: Normal / No Output / Loss of AC / Triggered.

Weights (approximate)

Agency Listings
