Brand: Altronix
|
SKU:
553040

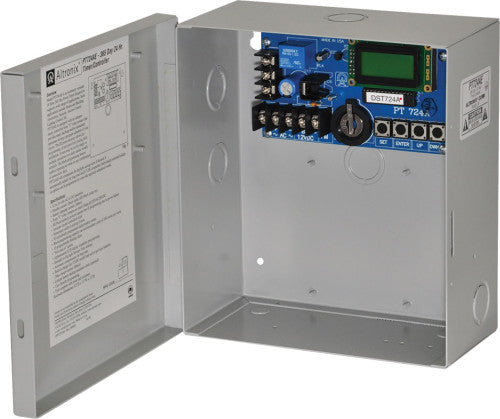

Altronix PT724AE | Timer, 365 Day 24 Hour Annual Event, 1 Channel, LCD Display, Battery Charger, Board
Regular price
$170.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix PT724AE | Timer, 365 Day 24 Hour Annual Event, 1 Channel, ...
Regular price
$170.38
Unit price
Description
Description
PT724AE is an extremely versatile 24 Hour 365 Day Event Timer designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc. The PT724AE is equipped with an independently controlled form "C" relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.
Main Features
- EE Prom memory protects against loss of programming due to power failure.
- Accurate crystal controlled clock.
- Momentary and/or Latching Events.
- 50 individually programmed daily/weekly events.
- Block programming capacity can accommodate a total of 350 events per week.
- 10 programmable Holiday dates.
- First man in option.
- Standard or Daylight Savings Time settings.
- Automatic compensation for leap year.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/4AH Batteries.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 12 to 24 volts AC or DC operation.
Relay
- Form "C" relay contacts are rated 10A @ 120VAC/28VDC.
- Standby current: 10mA (relay off) 50mA (relay on).
Visual Indicators
- Alphanumeric LCD display simplifies programming.
Battery Backup
- Built-in charger for 12VDC sealed lead acid or gel type batteries (Max charge current 100mA).
- Optional lithium battery backup maintains clock. Order Altronix part # LB2032.
Weights (approximate)
| Product Weight | 0.48 Lbs. (0.22 kg). |
|---|---|
| Shipping Weight | 0.5 Lbs. (0.23 kg). |
