Brand: Altronix | SKU: 231014

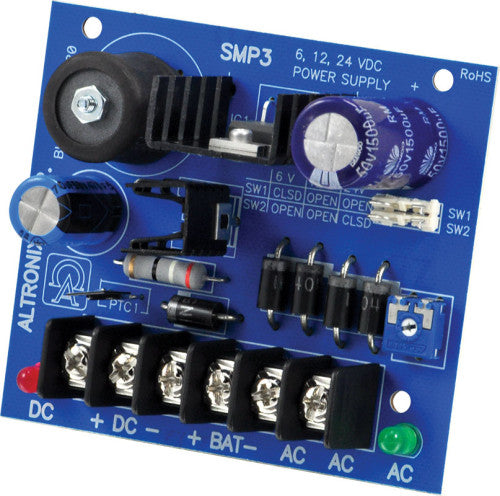

Altronix SMP3 | Power Supply Charger, Single Output, 6/12/24VDC @ 2.5A, 24/28VAC, Board

$50.91

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix SMP3 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Specifications

Dimensions (approximate)

3"W x 3.5"L x 2"H (76.2 mm W x 88.9 mm L x 50.8 mm H).

Input

16VAC to 28VAC.

Output

6VDC, 12VDC or 24VDC selectable output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).

Visual Indicators

AC input and DC output LED indicators.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
6VDC: 8 BTU/Hr.
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement:
6VDC/12VDC: 55.2VA.
24VDC: 115VA.

Weights (approximate)

Product Weight	0.25 Lbs. (0.113 kg).
Shipping Weight	0.35 Lbs. (0.158 kg).

Documents and Downloads
