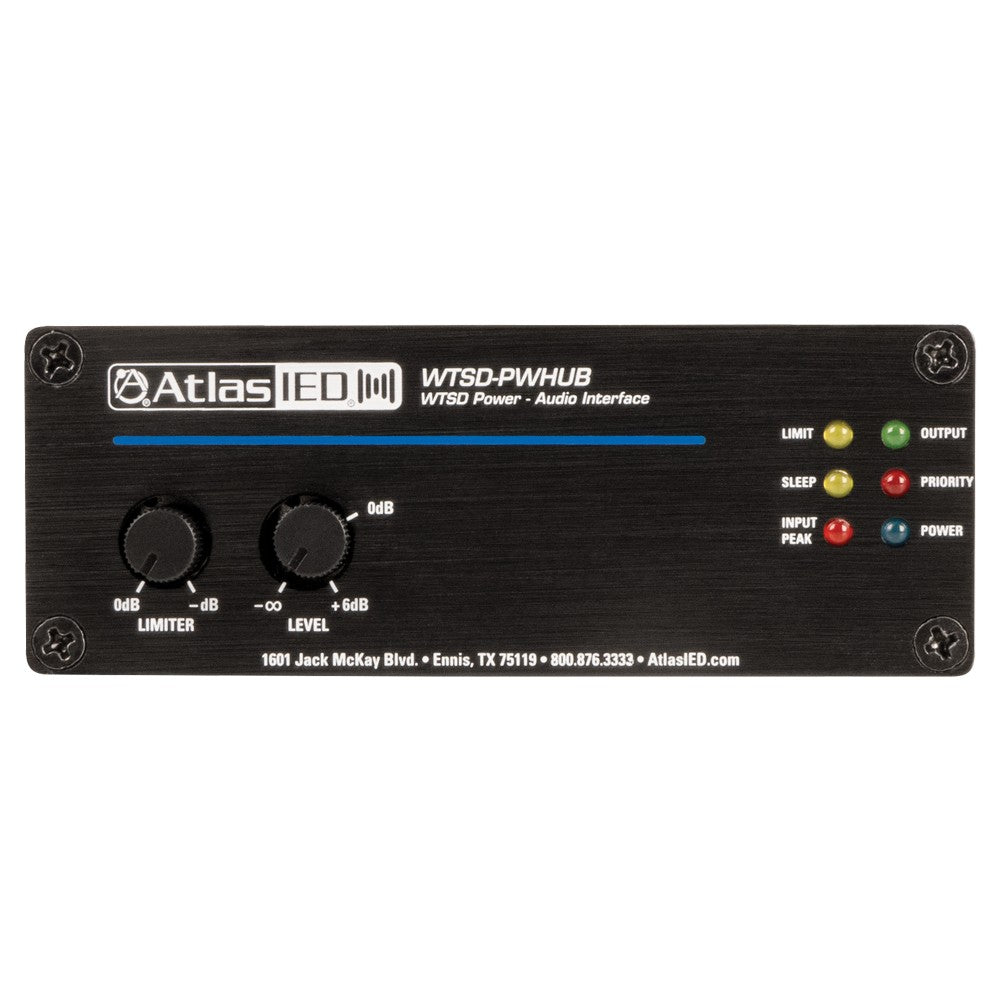

Atlas Sound WTSD-PWHUB | WTSD Audio/Power & Control Interface
Description
Description
The WTSD-PWHUB is designed to be used in conjuction with AtlasIED WTSD wall plate mixers at the head-end (amp rack) in place of the WTSD-PWBOB when additional headroom control and external device integration is necessary. The WTSD-PWHUB provides an emergency audio mute for fire systems and two NO / NC relays, one that is activated automatically by the auto sleep function and one that can be manually activated by a local latching “System Priority” button on the WTSD-MIX31K or WTSD-MIX41K.
These relays can be configured to turn the head-end amp rack On or Off with the auto sleep function. The system priority button can be used to take over priority of the room by muting a background music and paging building wide system when the room is in use. The gain headroom limiter settings and indicators help control the balanced audio feed prior to the head-end amp when multiple WTSD’s are on a single bus. The limiter can be set to protect a high-power system from over loading the amplifier(s) and possibly damaging the speaker(s).
24VDC power supply required and is not included.
Atlas Sound - WTSD-PWHUB - Features
- Gain Adjust
- Peak Limiter
- Balanced Audio Out with Ground Lift
- TSD Power Supply Input
- Emergency CC Mute
- System Priority Relay
- Auto Sleep Relay
- WTSD RJ45 Bus Input
Specifications
Specifications
Atlas Sound - WTSD-PWHUB - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Amplifiers
- DSP / Signal Processors
- Audio Processing
Atlas Sound - WTSD-PWHUB - Related Products
- WTSD-MIX31K - Indoor/Outdoor Analog Wall 3x1 Mic/Line/BT/AUX Mixer W/Optional Dante® Audio Network Interface
- WTSD-MIX31K - Indoor/Outdoor Analog Wall 4x1 Mic/Line Mixer W/Optional Dante® Audio Network Interface
Atlas Sound - WTSD-PWHUB - Specifications
| Input Type | RJ45 Proprietary 8-Wire Bus |
|---|---|
| Output Type | Balanced Line Level |
| Output impedance | 300? Balanced, 150? Unbalanced |
| Level Control | 0 to +6dB with 0dB Mark |
| Frequency Response | 20Hz - 20kHz +/- 1dB |
| THD | 0.06% @ 1kHz |
| Operating Temperature Range | 14º - 104º F (-10º - 40º C) |
| Height | 1.5" (39mm) |
| Width | 4" (101mm) |
| Depth | 2.75" (70mm) |
| Weight | .375 lbs (0.17kg) |
| Shipping Weight | .625 lbs (0.28kg) |
| UNSPSC Code | 52161600 |
