Description
Description

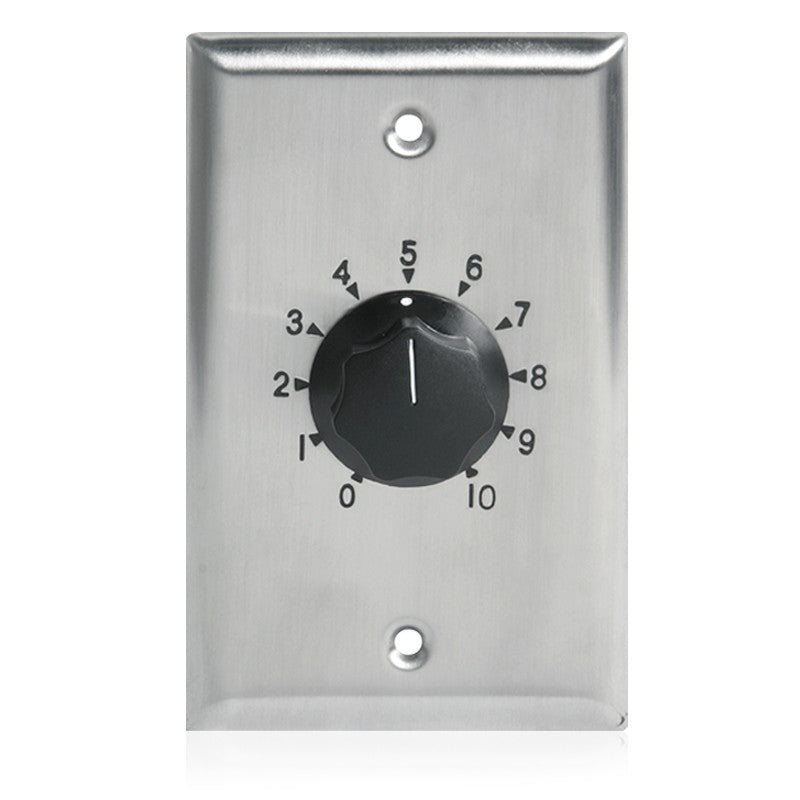

High-quality auto transformer AT100-PA provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob.
Atlas Sound - AT100-PA - Features
- Mount into Most 1-Gang E.O. Boxes
- Priority Paging Feature By-Passes the Effect of the Attenuator
- The SPDT Relay is Operated with 24 VDC at 10mA
- Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob
Specifications
Specifications
Atlas Sound - AT100-PA - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Audio Equipment Accessories
- Audio Accessories & Options
- Volume Controls
- Commercial
Atlas Sound - AT100-PA - Related Products
- AT100D - Deluxe Decora Plate Mounted 100W Attenuator, 3dB Steps
- AT100D - Deluxe, Rack Mounted 100W Attenuator, 3dB Steps
- AT100-PARM - Deluxe Priority, Rack Mounted 100W Attenuator W/Priority Relay, 3dB Steps
- AT100 - 100 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator
Atlas Sound - AT100-PA - Specifications
| Plate Size | 1 gang |
|---|---|
| Plate Type | Stainless Steel |
| Power Rating | 100W |
| Total Attenuation | 27dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.99 cm) |
| Depth | 2 1/2" (6.35 cm) |
| Shipping Weight | 1.60 lbs (0.73 kgs) |
| Safety Listed | 813, 2043 |
| UNSPSC Code | 52161600 |
