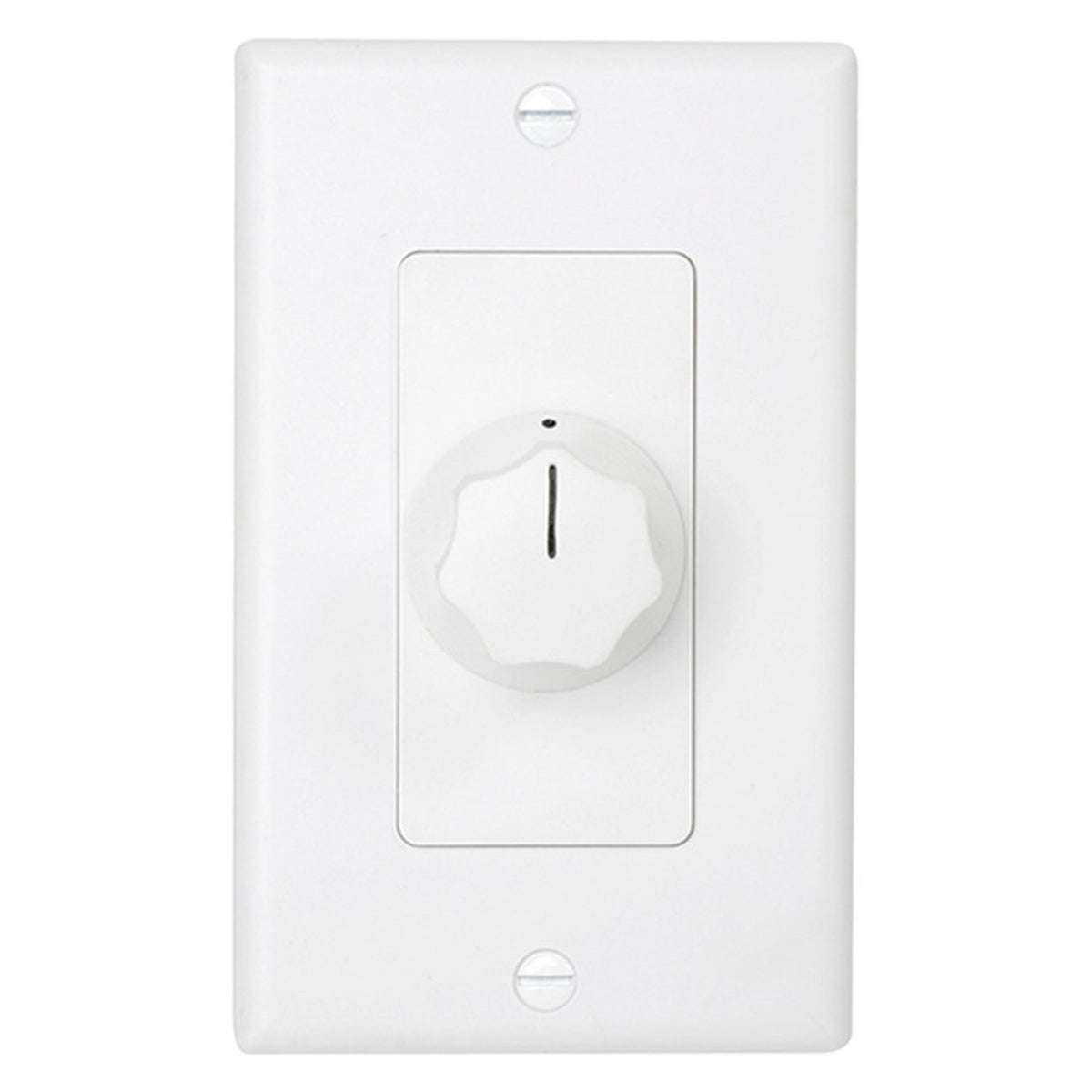

Atlas Sound AT35D | Deluxe Decora Plate Mounted 35W Attenuator, 3dB Steps
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Atlas Sound AT35D | Deluxe Decora Plate Mounted 35W Attenuator, 3dB...
Description
Description
Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems.
Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and come complete with white and ivory plastic plates with matching skirted knobs.
Atlas Sound - AT35D - Features
- Attractive Alternative to Commercial Series Attenuators
- Mount into Most 1-Gang E.O. Boxes
- White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style
- All models mount into most 1-gang E.O. boxes
- Superior frequency response
- Easy installation via removable "Phoenix" style four-pole connector
Specifications
Specifications
Atlas Sound - AT35D - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- Audio Accessories & Options
- Volume Controls
- Commercial
Atlas Sound - AT35D - Related Products
- AT35-PA - Deluxe Priority, Plate Mounted 35W Attenuator W/Priority Relay, 3dB Steps
- AT35-PA - Deluxe Priority, Rack Mounted 35W Attenuator W/Priority Relay, 3dB Steps
- AT35-RM - Deluxe, Rack Mounted 35W Attenuator, 3dB Steps
- AT35 - 35 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator
Atlas Sound - AT35D - Specifications
| Plate Size | 1 gang |
|---|---|
| Plate Color | White - Ivory |
| Plate Type | Decora |
| Power Rating | 35W |
| Total Attenuation | 27dB |
| Height | 4 1/2" (11.43 cm) |
| Width | 2 3/4" (6.985 cm) |
| Depth | 2 1/8" (5.3975 cm) |
| Shipping Weight | 1.20 lbs (0.54 kgs) |
| Safety Listed | 813, 2043 |
| UNSPSC Code | 52161600 |
