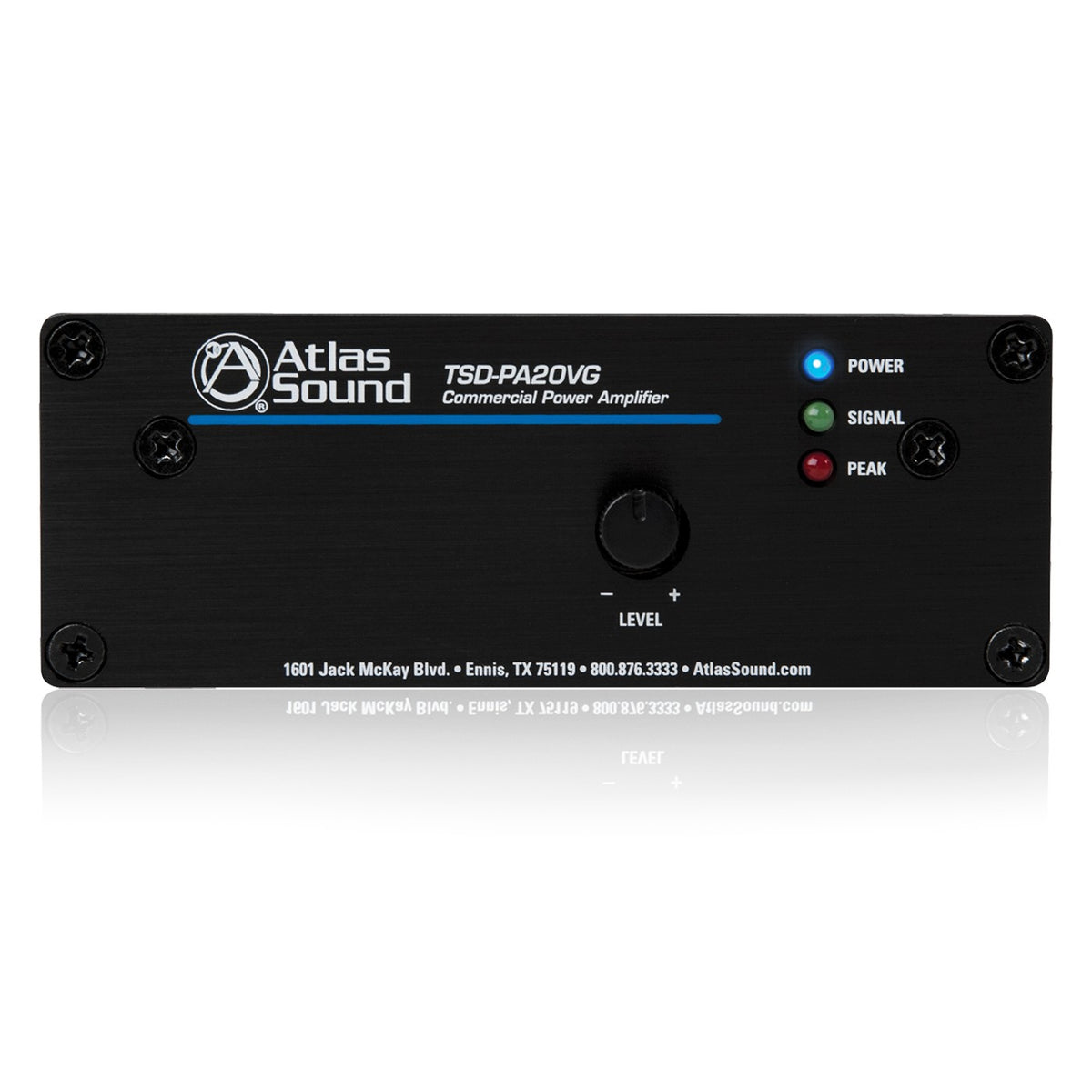

Atlas Sound TSD-PA20VG | 20W Mono 4?/25V/70.7V/100V Power Amplifier
Description
Description
The TSD-PA20VG is a cost effective mono amplifier for 4? and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.
For sound masking applications the TSD?PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.
Unit requires P ower Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. You must use the TSD24V2500MA power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.
Atlas Sound - TSD-PA20VG - Features
- 4?/25V/70.7V/100V Output
- One (1) Balanced Input
- Removable Level Control with Set-It-And-Forget-It Security Cover
- Input Signal and Peak Indicator LEDs
- Cable Management System
- Removable Phoenix Style I/O Connectors
- Energy Efficient
- Compact Chassis Design
- Power Supply Sold Separately
- One Balanced Input
- Removable Level Control with Set it and Forget it Security Cover
- Input Signal and Peak Indicator LEDs
- Cable Management System
- Removable Phoenix Style I/O Connectors
- Energy Efficient
- Compact Chassis Design
Specifications
Specifications
Atlas Sound - TSD-PA20VG - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Audio Equipment
- Other Audio Equipment
- DSP / Signal Processors
- Audio Processing
Atlas Sound - TSD-PA20VG - Related Products
- TSD-RMK - TSD Series Rack Mount Kit (shown with optional TSD mounted)
- TSD-RMK - 10W Mono 4?/25V/70.7V/100V Power Amplifier
- TSD-PS24V2500MA - 2500MA 24VDC TSD Power Supply
Atlas Sound - TSD-PA20VG - Specifications
| Frequency Response | 40Hz - 20kHz |
|---|---|
| Power Output | 20W @ 4?, 10W @ 8?, 20W @ 25V/70V/100V Loads |
| Line Input Level | 500mV (-6dBV) Balanced |
| Power Requirement | 490mA |
| Idle Current | 50mA |
| Height | 1.5" (3.81 cm) |
| Width | 4" (10.16 cm) |
| Depth | 5.2" (13.2 cm) |
| Voltage Compatibility | 24V |
| UNSPSC Code | 52161600 |
