Brand: CommScope
|
SKU:
469952

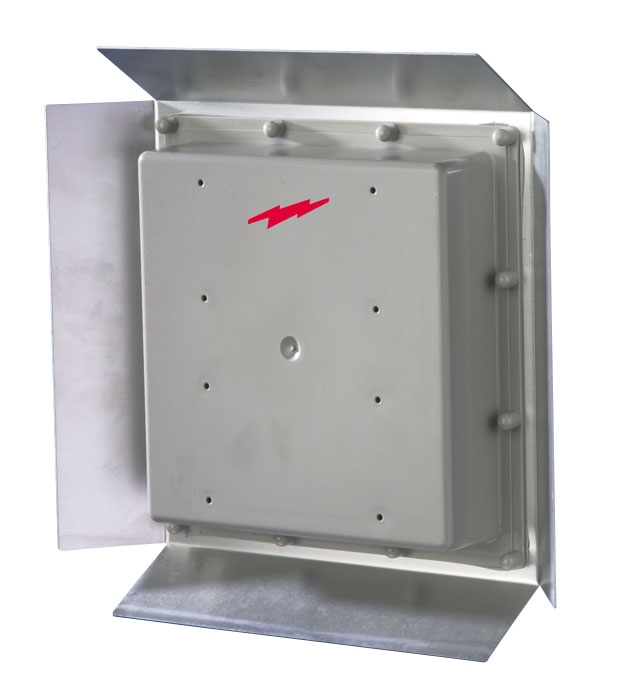

Commscope QD-2402 | 1-port small cell antenna, 2400–2500 MHz, 27° HPBW, fixed electrical tilt
Regular price
$547.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope QD-2402 | 1-port small cell antenna, 2400–2500 MHz, 27° H...
Regular price
$547.83
Unit price
Description
Description
Commscope QD-2402 | 1-port small cell antenna, 2400–2500 MHz, 27° HPBW, fixed electrical tilt
Features and Benefits
- Low profile antenna
- Small, light weight design provides an easy to install, cost effective solution
- Single piece radome provides long term mechanical stability
- Mounts to top of tower, pole, or building
Specifications
Specifications
General Specifications
| Antenna Type | Small Cell |
|---|---|
| Band | Single band |
| Color | Off-white |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ABS, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | N Female |
| RF Connector Location | Rear |
| RF Connector Quantity, high band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Width | 272 mm / 10.709 in |
|---|---|
| Length | 280 mm / 11.024 in |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 2400 – 2500 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 2400–2500 |
| Gain, dBi | 16 |
| Beamwidth, Horizontal, degrees | 27 |
| Beamwidth, Vertical, degrees | 27 |
| USLS, typical, dB | 17 |
| Front-to-Back Ratio at 180°, dB | 30 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 3 (2) |
Electrical Specifications
| Impedance | 50 ohm |
|---|---|
| Operating Frequency Band | 2400 – 2500 MHz |
| Polarization | Vertical |
| >Spec Table Title< = Electrical Specifications | https://cdn.shopify.com/s/files/1/0843/1616/0235/files/specs.jpg?v=1786475215 |
| Frequency Band, MHz | 2400–2500 |
| Gain, dBi | 16 |
| Beamwidth, Horizontal, degrees | 27 |
| Beamwidth, Vertical, degrees | 27 |
| USLS, typical, dB | 17 |
| Front-to-Back Ratio at 180°, dB | 30 |
| VSWR / Return loss, dB | 1.5 / 14.0 |
| Input Power per Port, maximum, watts | 3 (2) |
Packaging and Weights
| Net Weight, without mounting kit | 0.9 kg / 1.984 lb |
|---|
Regulatory Compliance/Certifications
| CE | Compliant with the relevant CE product directives |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
