Atlas Sound BB-EB1616DT | Blue Bridge Expansion I/O Box with Dante
Description
Description

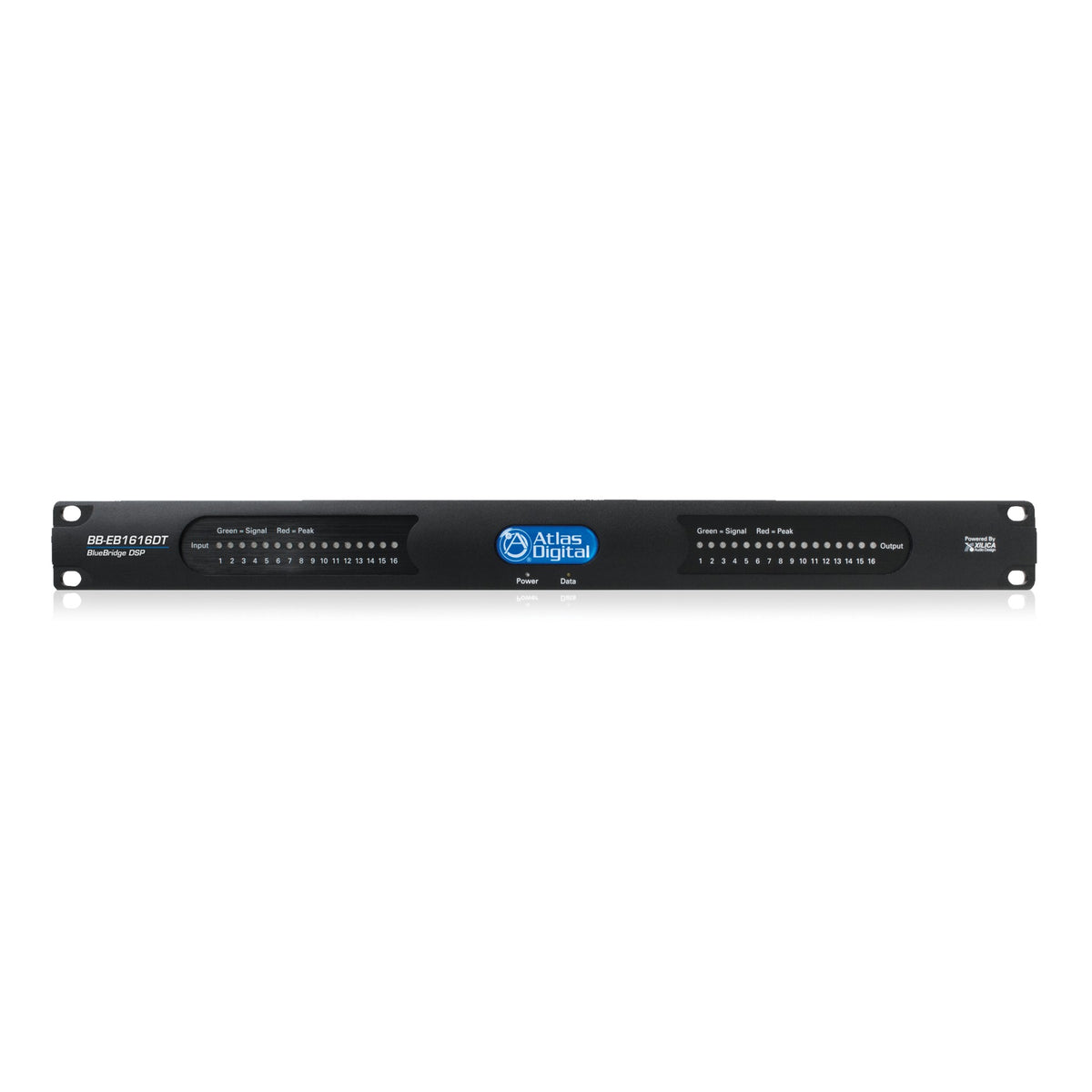

The BB-EB1616DT is a single rackspace device with LED indicators for each channel, network LEDs and power LEDs on the front panel. On the rear panel are dual RJ-45 connectors for Dante™, one RJ-45 network control connector, 16 balanced mic/line inputs and 16 balanced line level outputs all using Euro Block/Phoenix style connectors. The BB-EB1616DT can be incorporated into any BlueBridge ® system as an I/O expander or it can be used as a standalone digital snake on networks featuring Dante™. Input configuration, mutes, analog and digital trim, phantom power and live level meters work with all BlueBridge software platforms.
Atlas Sound - BB-EB1616DT - Features
- 16 x 16 Dante™ Network I/O
- 16 x 16 Analog I/O
- Selectable Mic/Line Inputs
- Premium Grade THAT® Corp Microphone Preamps
- 48V Phantom Power
- 48kHz Sampling
- 40 Bit Floating DSP Engine
- High Performance 24 Bit Converters
- Ethernet Network Connectivity
Specifications
Specifications
Atlas Sound - BB-EB1616DT - Product Categories
- Shop by Manufacturer/Atlas Sound
- Audio and Visual
- Video Signal Distribution
- Other Video Signal Distribution
- DSP / Signal Processors
- BlueBridge® DSP Platform
- BlueBridge® DSP Rack Mount Devices
Atlas Sound - BB-EB1616DT - Related Products
- BB-1616 - 16 Input x 16 Output - Networkable DSP Device
- BB-1616 - 16 Input x 16 Output - Networkable DSP Device with Dante™
- BB-168AECDT - 16 Input x 8 Output - Networkable DSP Device with Acoustic Echo Cancellation
- BBWP-TOUCH7B - BlueBridge® 7" Touch Panel Wall Controller
Atlas Sound - BB-EB1616DT - Specifications
| Input impedance | >10k? |
|---|---|
| CMRR | >100dB (50Hz-10kHz) |
| Maximum Level | +20dBu |
| CMRR | >100dB (50Hz - 10kHz) |
| Mic Gain | 0/+40dB Steps |
| Frequency Response | 20Hz - 20kHz |
| Crosstalk | <-100dB |
| Distortion | .002% (1kHz @ +40dBu)) |
| Signal LEDs | 1 Dual Color Per Channel |
| Status LEDs | Power and Data |
| Analog I/O | Phoenix Plug-in 3.5MM |
| Ethernet Network I/O | RJ45 (CAT5) |
| Power | 90-240VAC (50-60Hz) |
| Width | 19" (483mm) |
| UNSPSC Code | 39121020 |
