Brand: Chatsworth Products Inc (Cpi) | SKU: 160515

Chatsworth 10622-020 | Standard Busbar

$320.19

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

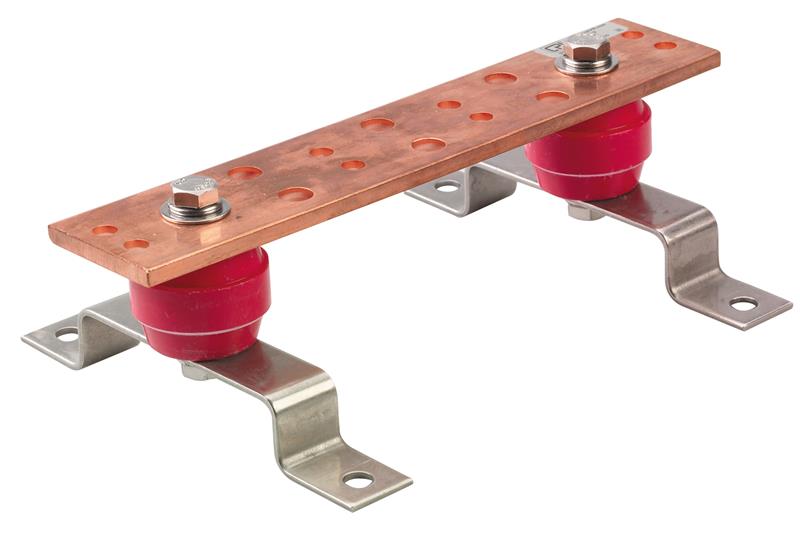

Chatsworth 10622-020 | Standard Busbar; 4"H x 20"W x 0.25"D (100 mm x 510 mm x 6.4 mm)

Specifications

Each Busbar assembly consists of

1 Busbar
2 insulators
2 stand-off brackets
4 stainless steel bolts
4 lock washers
4 flat washers
All Busbars ship individually and preassembled
Other configurations available on request
UL Listed

Product Details

Width	20" (510 mm)

Product Information

Standard Busbars Overview

CPI Standard Busbars are insulated ground bus mounting plates specifically designed for commercial applications. The Hard-Drawn Electrolytic Tough Pitch 110 Alloy solid copper bonding bars are 1/4" (6.4 mm) thick and stand off 2.75" (70 mm) from the backboard or wall. The 10" (254 mm) Busbar accepts 1/4" (6.4 mm) single bolt lugs. The 12" (304.8 mm) and 20" (508 mm) Busbars provide connection for nine or 17 lugs respectively, accepting lugs with either 3/4", 1" or 1-3/4" (19 mm, 25.4 mm or 44.5 mm) centers. Any lug with 3/8” (9.5 mm) bolts may be used.

Documents and Downloads
