Brand: Chatsworth Products Inc (Cpi) | SKU: 354217

Chatsworth 40161-072 | Vertical Rack Bonding Busbar Kit

$202.87

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Chatsworth 40161-072 | Vertical Rack Bonding Busbar Kit; 5/8"W x 1/4"D x 72"L (15.88 mm x 6.4 mm x 1830 mm)

Key Features and Benefits

Other configurations are available on request
UL Listed, File E236184, Category KDER (US), KDER7 (Canada) - Bonding and Grounding Equipment

Specifications

Kit consists of

(1) Vertical Rack Bonding Busbar
(1) #2 AWG two-hole ground compression lug with 3/8” (9.53 mm) holes on 1” (25.4 mm) centers
(3) white Delrin insulator blocks
(3) self-tapping screws
(3) #12-24 mounting screws
(2) stainless steel lock washers, 5/16” (127 mm)
(2) nuts

Product Details

Depth	72" (1830 mm)

Product Information

Vertical Rack Bonding Busbar Kits Overview

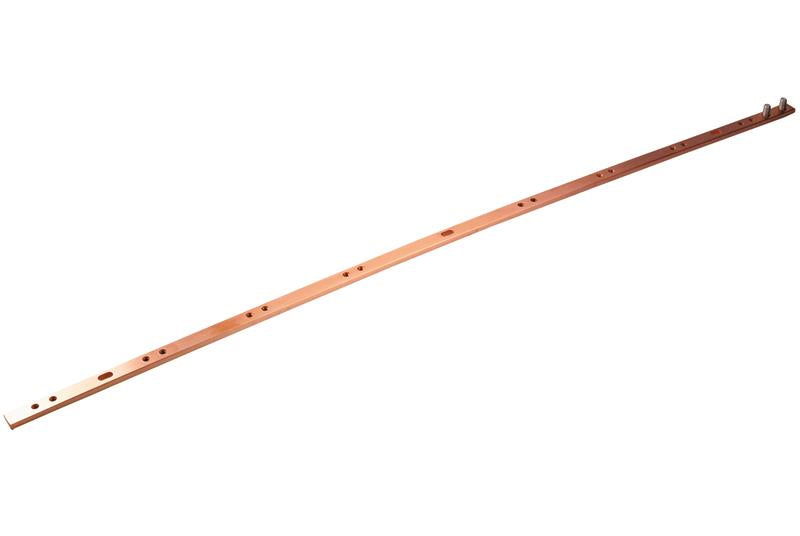

Vertical Rack Bonding Busbar (RBB) Kits isolate the Busbar from the rack to help control current paths from passing through one piece of equipment to another. The 36”L (910 mm) bar has one set of #5/16 self-clinching studs on 1” (25.4 mm) centers at one end for attachment of a equipment bonding conductor. The 72”L (1830 mm) bar has two sets of #5/16 self-clinching studs on 1” (25.4 mm) centers at both ends for attachment of a equipment bonding conductor.
