Brand: Chatsworth Products Inc (Cpi) | SKU: 408531

Chatsworth 40172-001 | Vertical Rack Bonding Bar Kit

$200.42

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Chatsworth 40172-001 | Vertical Rack Bonding Bar Kit; Includes (1) busbar; (3) #12-24 screws; abrasive pad; joint compound and a ground label; Each

Key Features and Benefits

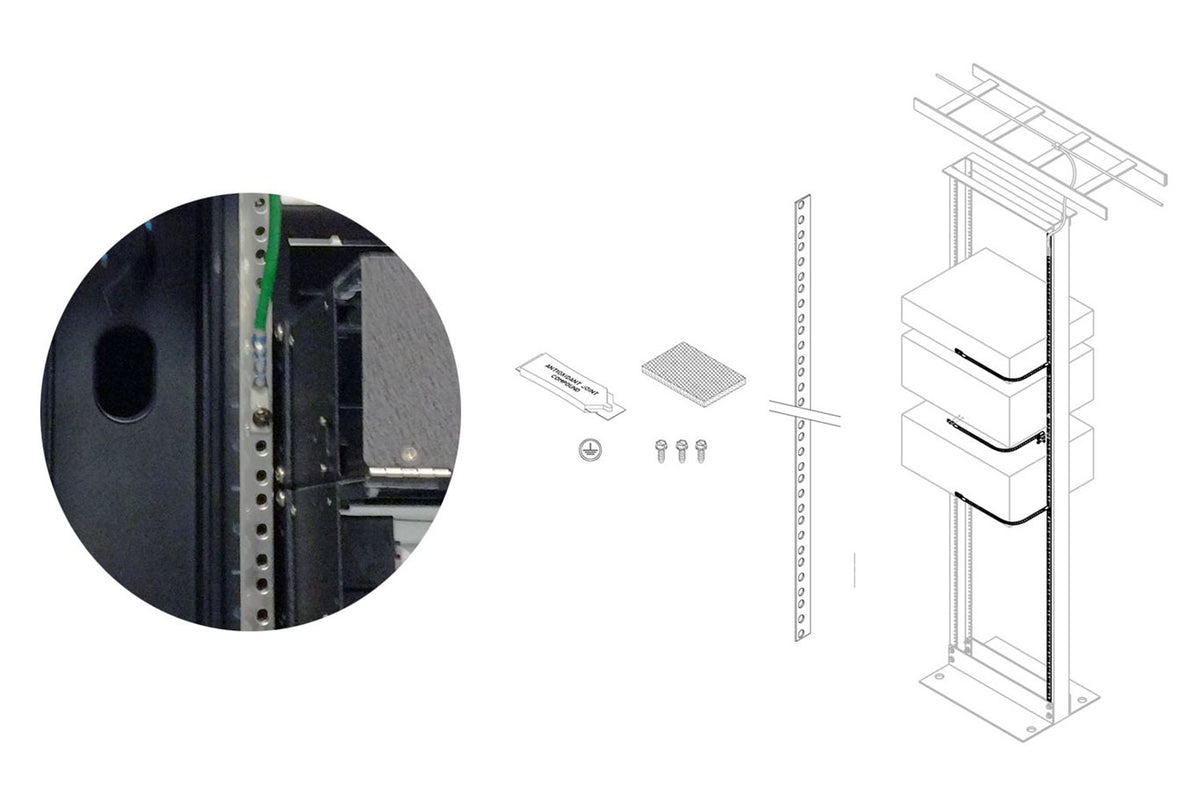

Each kit includes one ground bar, three #12-24 zinc-plated thread forming hex washer head installation screws, an abrasive pad, joint compound and a ground label
The ground bar is .05” (1.3 mm) thick tinned copper strip, 78.7”H x .68”W (1997 mm x 17 mm) and is punched with holes that match the EIA-310 universal hole pattern
UL Listed Ground Bar, File E236184, Category KDER (US), KDER7 (Canada) - Bonding and Grounding Equipment

Specifications

Product Information

Vertical Rack Bonding Bar Kit Overview

The Rack Bonding Busbar (RBB) Kit includes a thin strip of tinned copper that attaches to the rack’s equipment mounting rail to provide direct bonding contact for rack-mount equipment or a convenient bonding strip. Sized to fit a 7’ (2.1m) high rack with an EIA-310-E Universal hole pattern and 45U, the busbar is punched with a series of holes that align with each mounting hole on the rack. When equipment is mounted to the rack, the rack-mount brackets touch the busbar. Alternately, the Equipment Bonding Jumper Kit can be used to connect equipment to the busbar.

Documents and Downloads

Cut Sheet
