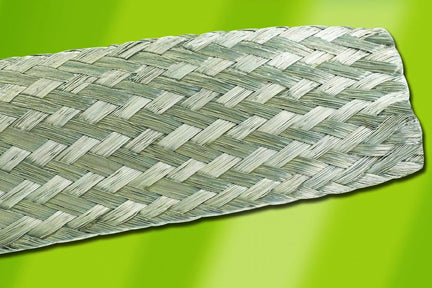

Alpha Wire 2182 SV005 | FIT-Wire-Management, Braid, Tubular, 165 Cu...
Regular price
$69.19
Unit price
Brand: Alpha Wire
|
SKU:
A2182
Regular price
$69.19
Unit price
Description
Description
Tubular Ground Braid 1.500" (38.10mm, 1 1/2") - Inner Dia X 100.0' (30.48m) 30 AWG
Specifications
Specifications
Specifications
| Material | Tinned Copper, per ASTMB-33 and CID-A-A-59551 |
|---|---|
| Stranding | Solid |
| Diameter | 0.010" |
| AWG of Ends | 30 |
| Number of Carriers | 48 |
| Nominal Percent Coverage | 92 |
| Total Number of Ends | 576 |
| Approx. Equiv. AWG | 2 |
| Approx. Ampacity | 165 Amps |
| Federal Spec Number | AA59569R30T1500 |
| EU Directive 2011/65/EU(RoHS2): | All materials used in the manufacture of this part meet the requirements of European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C. |
| REACH Regulation (EC 1907/2006): | This product does not contain any of the 16 substances listed on the European Union's REACH Substance of Very High Concern (SVHC) candidate list in excess of 0.1% mass of the item. |
| California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
