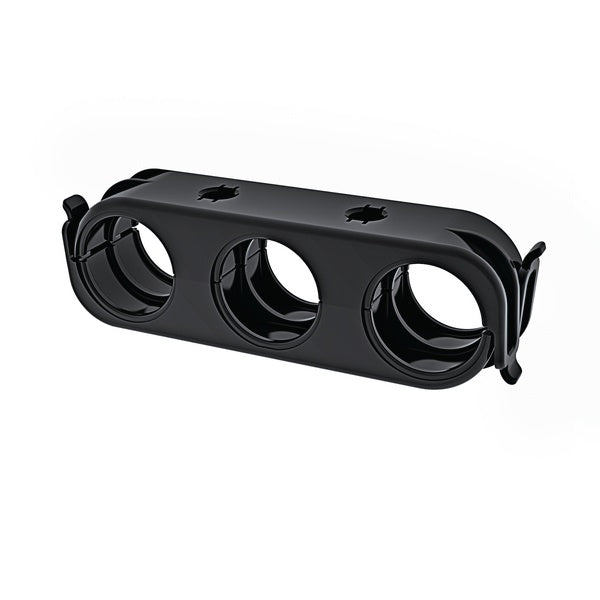

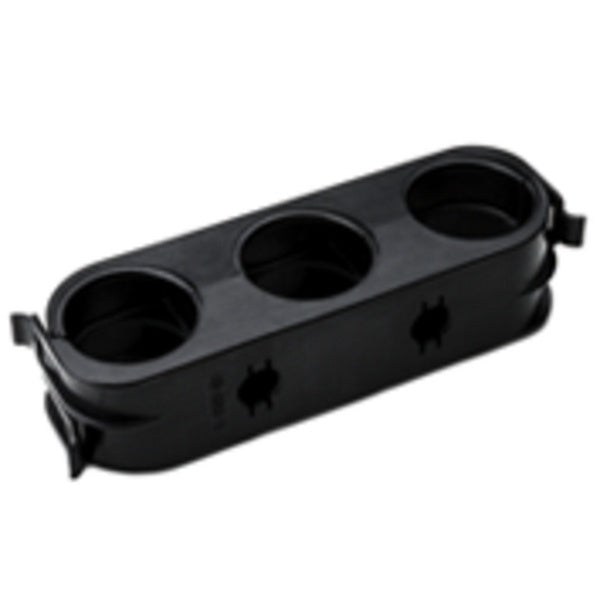

HellermannTyton 133-00998 | Hc Clamp Bundle Separator, Three Hole, Pa66Gfhirhs, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 133-00998 | Hc Clamp Bundle Separator, Three Hole, ...
Description
Description

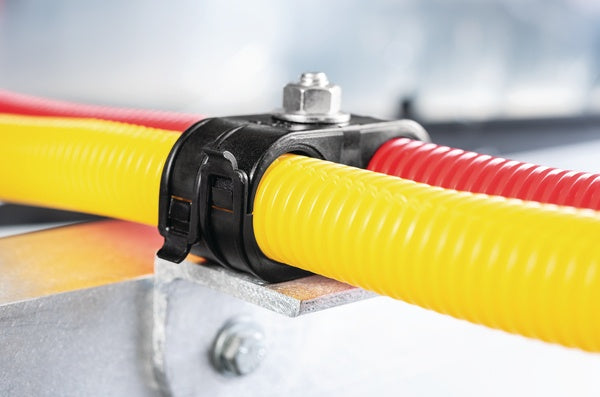

HC Clamps separate multiple bundles and secure them to brackets or frame rails. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convolu ted tubing, but they can also be used to separate separate bundles that aren’t protected with convoluted tubing.
HC Clamps separate multiple bundles and secure them to brackets or frame rails. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convoluted tubing, but they can also be used to separate separate bundles that aren't protected with convoluted tubing.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 133-00998 - Features
- Separates and secures bundles avoiding abrasion
- Designed to handle both convoluted tubing and bundles not covered in convoluted tubing
- Come in a variety of sizes and colors to be easily identified
Specifications
Specifications
HellermannTyton - 133-00998 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Bundle Separators
- Bundle Separation Clamps
HellermannTyton - 133-00998 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 133-00998 - Base Data
| Article Number | 133-00998 |
|---|---|
| Type | HC3A |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | HC Clamp Bundle Separator, Three Hole, PA66GFHIRHS, Black, 500/pkg |
| Global Part Name | HC3A-PA66HIRGF13-BK |
HellermannTyton - 133-00998 - Product Dimensions
| Length L (Imperial) | 4.246 |
|---|---|
| Length L (Metric) | 107.86 |
| Variant | Separators |
| Width W (Imperial) | 1.1 |
| Width W (Metric) | 27.94 |
| Bundle Diameter Min (Imperial) | 0.96 |
| Bundle Diameter Min (Metric) | 24.39 |
| Bundle Diameter Max (Imperial) | 0.9 |
| Bundle Diameter Max (Metric) | 24.3 |
| Bundle Diameter 1st Loop Max (Imperial) | 0.96 |
| Bundle Diameter 1st Loop Max (Metric) | 24.39 |
| Bundle Diameter 2nd Loop Max (Imperial) | 0.96 |
| Bundle Diameter 2nd Loop Max (Metric) | 24.39 |
| Height H (Imperial) | 1.38 |
| Height H (Metric) | 34.94 |
| Mounting Hole Diameter D (Imperial) | 0.32 |
| Mounting Hole Diameter D (Metric) | 8.12 mm |
| Mounting Hole Diameter D Max (Metric) | 8.12 |
HellermannTyton - 133-00998 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 133-00998 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, glass-fiber reinforced (PA66HIRGF13) |
|---|---|
| Material Shortcut | PA66HIRGF13 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
