HellermannTyton 151-01231 | Heavy Duty Hinge Clamp, 0.59" Max ...
Description
Description

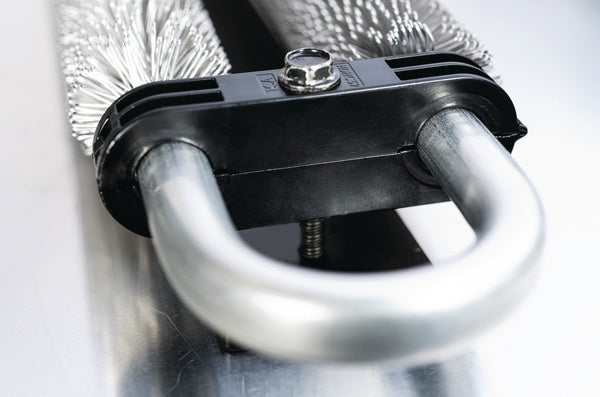

These clamps separate multiple bundles and secure them to any surface with a 6.8 mm stud or bolt. The one-piece hinged design snaps together to keep bundles such as tubing or battery cables separated. The mounting hole features two pawls for easy prein stallation on a threaded fastener prior to securing with a mechanical fastener.
These clamps separate multiple bundles and secure them to any surface with a 6.8 mm stud or bolt. The one-piece hinged design snaps together to keep bundles such as tubing or battery cables separated. The mounting hole features two pawls for easy preinstallation on a threaded fastener prior to securing with a mechanical fastener.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-01231 - Features
- High-heat material can be used near engines and other sources of heat.
- Hinged design keeps two halves together and simplifies assembly.
- Secures with a single bolt or stud, providing quick installation.
- H-Mounts utilize existing frame rail bolts eliminating the need for additional fasteners.
- When used with cable ties, the H-Mounts eliminate the need to carry multiple sizes of fixed bundle diameter clamps which reduces inventory and purchasing costs.
- Top tie slot allows bundles to be positioned in up to three locations, to provide multiple use options.
- Side tie slots are are curved to minimize bundle abrasion and position the bundles adjacent to the bolt yet away from the frame.
Specifications
Specifications
HellermannTyton - 151-01231 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Bundle Separators
- Bundle Separation Clamps
HellermannTyton - 151-01231 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 151-01231 - Base Data
| Article Number | 151-01231 |
|---|---|
| Type | HDHC59 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Heavy Duty Hinge Clamp, 0.59" Max Diameter, PA46, Black, 250/pkg |
| Global Part Name | HDHC59-PA46-BK |

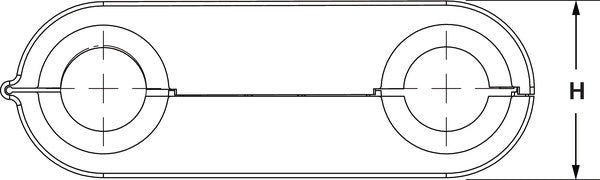

HellermannTyton - 151-01231 - Product Dimensions
| Length L (Imperial) | 7.32 |
|---|---|
| Length L (Metric) | 186 |
| Width W (Imperial) | 0.57 |
| Width W (Metric) | 14.5 |
| Bundle Diameter Max (Imperial) | 0.59 |
| Bundle Diameter Max (Metric) | 15 |
| Height H (Imperial) | 1.22 |
| Height H (Metric) | 30.9 |
| Mounting Hole Diameter D (Imperial) | 0.27 |
| Mounting Hole Diameter D (Metric) | 6.8 mm |
HellermannTyton - 151-01231 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-01231 - Materials & Specifications
| Material | Polyamide 4.6 (PA46) |
|---|---|
| Material Shortcut | PA46 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +266°F (-40°C to +130°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
