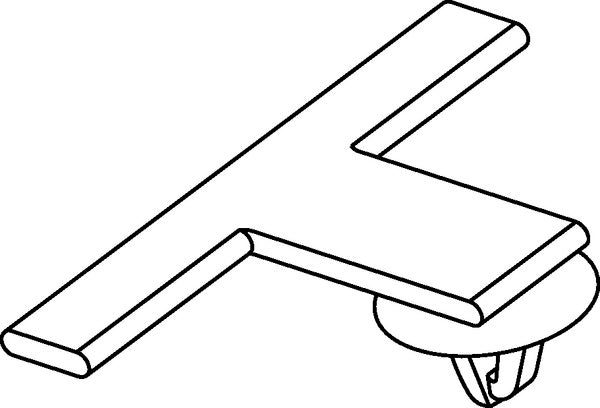

HellermannTyton 151-00077 | Standoff Bundling Clip, 2.0" Long, 0.03 - 0.06" Panel Thickness, Pa66Hs, Black, 100/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 151-00077 | Standoff Bundling Clip, 2.0" Long,...
Description
Description
Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using tape or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 151-00077 - Features
- Clip can be installed by hand - no need for hardware or tools.
- Design provides low insertion and high extraction force, for simple, secure performance.
- Clip keeps bundle away from areas that could cause damage due to rubbing.
- Soft material inserts snap precisely into the body of the clamp to provide an enhanced level of protection for applications with movement, high vibration or soft cable bundles.
Specifications
Specifications
HellermannTyton - 151-00077 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-affixing Clips
- Bundling Clips
HellermannTyton - 151-00077 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 2.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 151-00077 - Base Data
| Article Number | 151-00077 |
|---|---|
| Type | CH20D6 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Standoff Bundling Clip, 2.0" Long, 0.03 - 0.06" Panel Thickness, PA66HS, Black, 100/pkg |
| Global Part Name | CH20D6-PA66HS-BK |

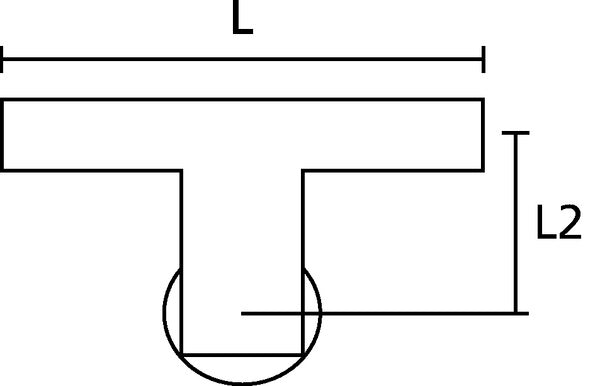

HellermannTyton - 151-00077 - Product Dimensions
| Length L (Imperial) | 2 |
|---|---|
| Length L (Metric) | 50 |
| Offset Length (Imperial) | 0.79 |
| Offset Length (Metric) | 20 |
| Fixation Method | Arrowhead |
| Height H (Imperial) | 0.3 |
| Height H (Metric) | 7.62 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.06 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 1.4 |
| Mounting Hole Diameter D (Imperial) | 0.25 - 0.28 |
| Mounting Hole Diameter D (Metric) | 6.4 - 7.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.25 |
| Mounting Hole Diameter D Max (Imperial) | 0.28 |
| Mounting Hole Diameter D Max (Metric) | 7 |
HellermannTyton - 151-00077 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 151-00077 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
