Brand: CommScope
|
SKU:
1047762

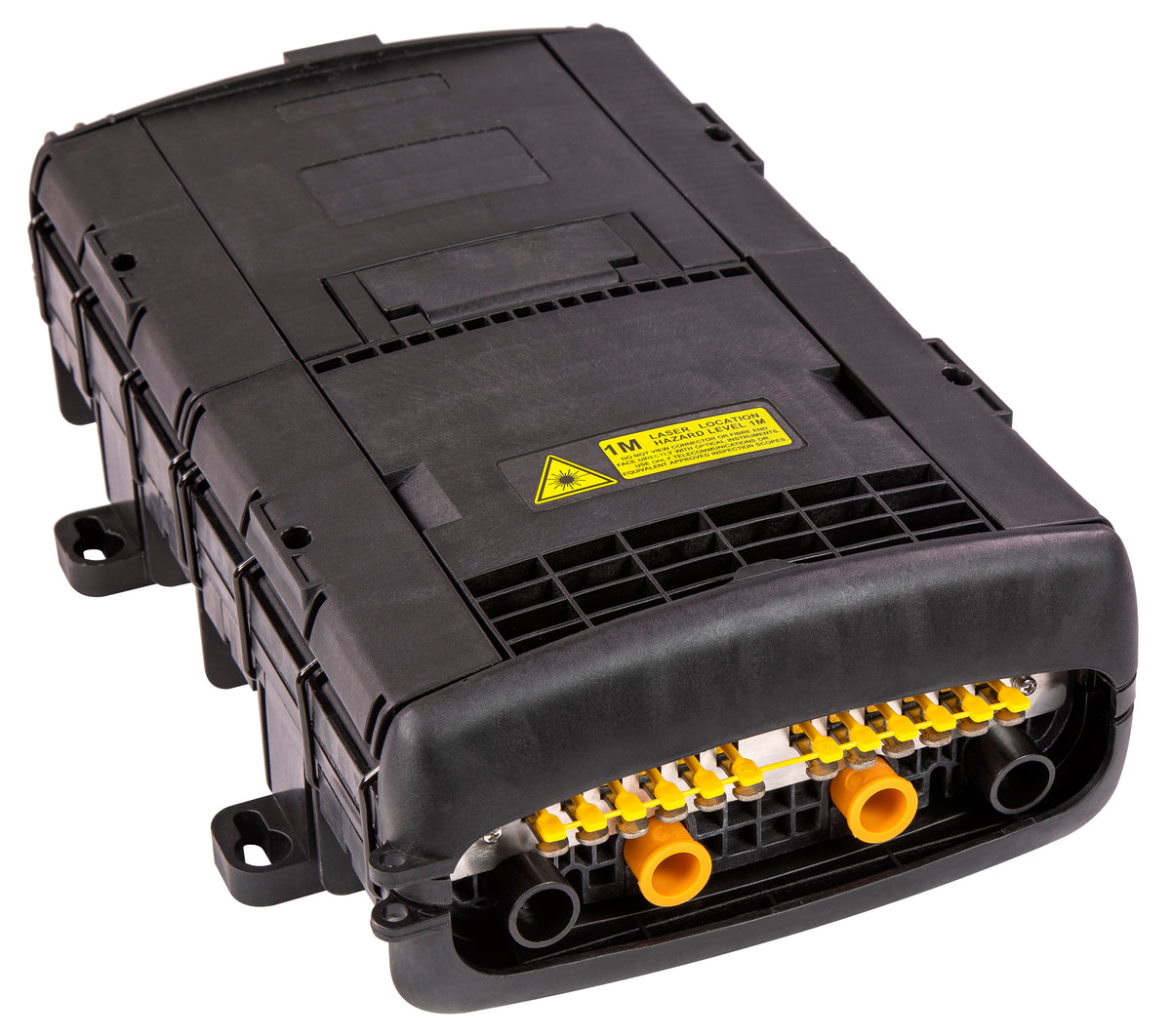

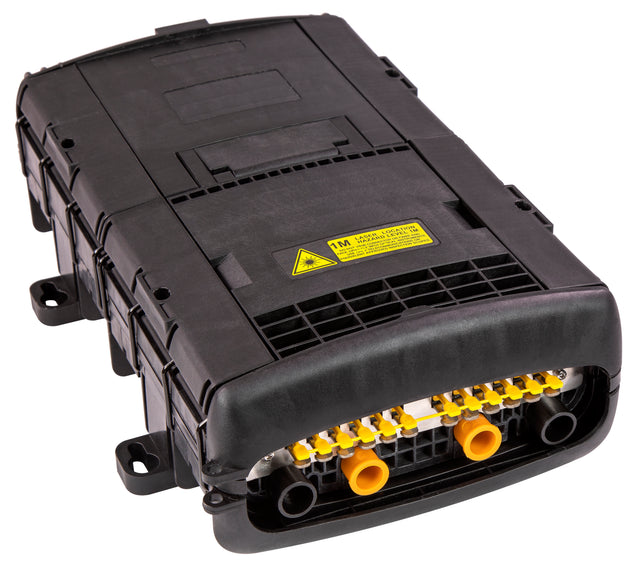

Commscope OFDC-C12-S2/TT-NN-N-96 | OFDC C12 Fiber Optic Splice/Patch Closure, Gel Cable sealing, 2 pre-installed 48-fiber splice trays, 12 SC/APC adapters and pigtails, no splitters
Regular price
$198.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope OFDC-C12-S2/TT-NN-N-96 | OFDC C12 Fiber Optic Splice/Patc...
Regular price
$198.90
Unit price
Description
Description
Commscope OFDC-C12-S2/TT-NN-N-96 | OFDC C12 Fiber Optic Splice/Patch Closure, Gel Cable sealing, 2 pre-installed 48-fiber splice trays, 12 SC/APC adapters and pigtails, no splitters
Features and Benefits
- Advanced gel sealing technology ensures fast and easy field handling without a need for special tools
- Individual access to drop cable connection area and seperate zones for looped cable storage for most cable types
- Compact and modular design suited for wraparound drop cable installation, enabling faster deployments
- Allows easy pass-through cabling and integration of optical components, even at later deployment stages
Specifications
Specifications
Product Classification
| Regional Availability | Asia / EMEA / Latin America / North America |
|---|---|
| Product Type | Single-ended, rectangular fiber closure |
| Product Series | OFDC |
General Specifications
| Cable Capacity, Drop | 12 Flat 8.0 x 4.5 mm (0.30 x 0.17 in) / 12 Round 1.5–5.5 mm (0.06–0.21 in) / 24 Round 2.0–5.5 mm (0.07–0.21 in) |
|---|---|
| Cable Capacity, Feeder | 2 Round 5.5–17.5 mm (0.21–0.68 in) |
| Cable Sealing Type | Compressed gel |
| Color | Black |
| Distribution Type | 12 ports |
| Mounting | Manhole / Pedestal / Strand / Wall |
| Port Type | SC/APC |
| Port, quantity | 12 |
| Splice Tray Included, quantity | 2 |
| Splice Tray Type Included | 48-way, heat shrink |
| Splicing Capacity, maximum | 96 |
| Splicing Type, Supported | Single fusion |
Dimensions
| Height | 118 mm / 4.646 in |
|---|---|
| Width | 214 mm / 8.425 in |
| Length | 370 mm / 14.567 in |
| Splice Protector Length, maximum | 45 mm / 1.772 in |
Material Specifications
| Material Type | Rugged polymer |
|---|
Environmental Specifications
| Installation temperature | -5 °C to +45 °C (+23 °F to +113 °F) |
|---|---|
| Storage Temperature | -30 ºC to +60 ºC (-22 ºF to +140 ºF) |
| Relative Humidity | 93%, non-condensing |
| Environmental Space | Above ground / Below ground |
| Qualification Standards | IEC 60529, IP68 + 2 m waterhead |
| UV Resistance | UV stabilized |
Packaging and Weights
| Included | Fiber pigtail assemblies (12) / SC/APC adapters (12) |
|---|---|
| Packaging quantity | 1 |
| Packaging Type | Box / Carton |
| Weight, net | 2.5 kg / 5.512 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
