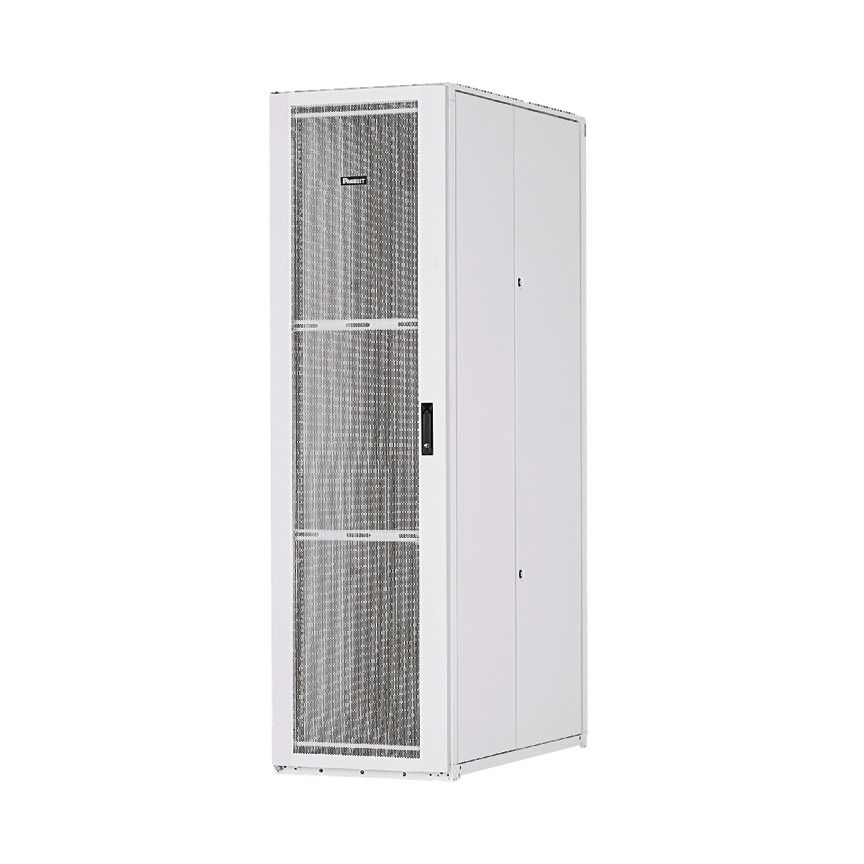

Panduit S8222WU | S-Type Cabinet | UPC - 61305636344
Description
Description

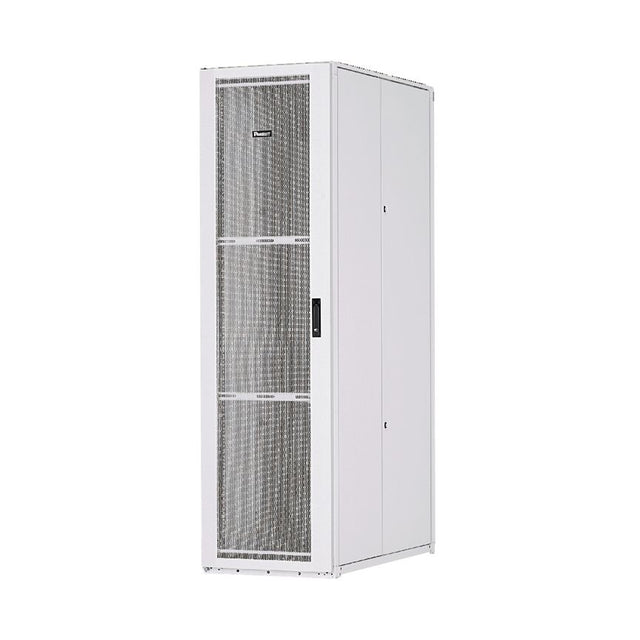

Net-Access S-Type universal cabinets are ideal for network or server application as these cabinets come standard with adjustable front and rear equipment rails to accommodate multiple applications. The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage. S-Type universal cabinets are manufactured with a welded and assembled steel frame and are available in multiple widths, depths and RU heights.
Panduit Net-Access Universal Cabinet, Type S Standard, 31.41 in W, 49.96 in D, 2 Doors, 42U Rack Unit, Lock: Keyed Quarter Turn Latch, (2) 6-1/2 in Rear Knockout Cable Entry, 2500/3000 lb, E-Rail/Floor Mount, 50 deg C, Steel, Polyester Epoxy Powder Coated, White
Features + Benefits
- Net-Access type-S cabinets are ideal for server application as these cabinets come standard with front fixed rails and rear adjustable equipment rails
- The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage
- S-type cabinets are manufactured with a welded and assembled steel frame
- Front single hinge door and split perforated rear door with 69% open perforation
- Fully integral bonded without the use of grounding wires equipment rails, door and side panels
- Can be ganged together for complete streamlined appearance improving data center aesthetics
- Integrated casters to provide easy roll to position
- Cable management ready rails included help speed deployment
- Easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability
- Design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Cabinet configurations for hot aisle/cold aisle or vertical exhaust ducting deployments
- Single hinge perforated front door
- Split perforated rear doors open in the middle to minimize door swing footprint
- One set POU bracket and two set cage nut rails
Panduit S8222WU Key Specs
| Sub Brand | Net-Access |
| Product Type | S-Type Cabinet |
| Rear Door Type | Split Perforated |
| Front Door Type | Single Hinge Perforated |
| Material | Steel |
| Color | White |
| Overall Width (In.) | 31.4 |
| Overall Width (mm) | 798 |
| Overall Depth (In.) | 49.96 |
| Overall Depth (mm) | 1269 |
| Overall Height (In.) | 79.76 |
| Overall Height (mm) | 2026 |
| Number of Rack Units | 42 |
| Casters | Yes |
| Static Load Capacity (kg) | 1360 |
| Static Load Capacity (lb) | 3000 |
| Rolling Load Capacity (kg) | 1133 |
| Rolling Load Capacity (lb) | 2500 |
| Finish/Coating | Powder-Coated |
| Standards Met | RoHS Compliant, EIA-310-E, TIA/EIA-942, UL2416 |
| NEMA Rating | 1 |
| Cooling Architecture | Hot Aisle / Cold Aisle |
Panduit S8222WU Data Sheets
| Installation Documents | Net-Access S-Type Network Cabinets | Download and View |
| Specification Sheets | Net-Access S-Type Universal Cabinets: RKSP175--WW-ENG | Download and View |
| Part Drawings | Net-Access S-Type Universal With Fully Adjustable Front Rails Cabinet | Download and View |
